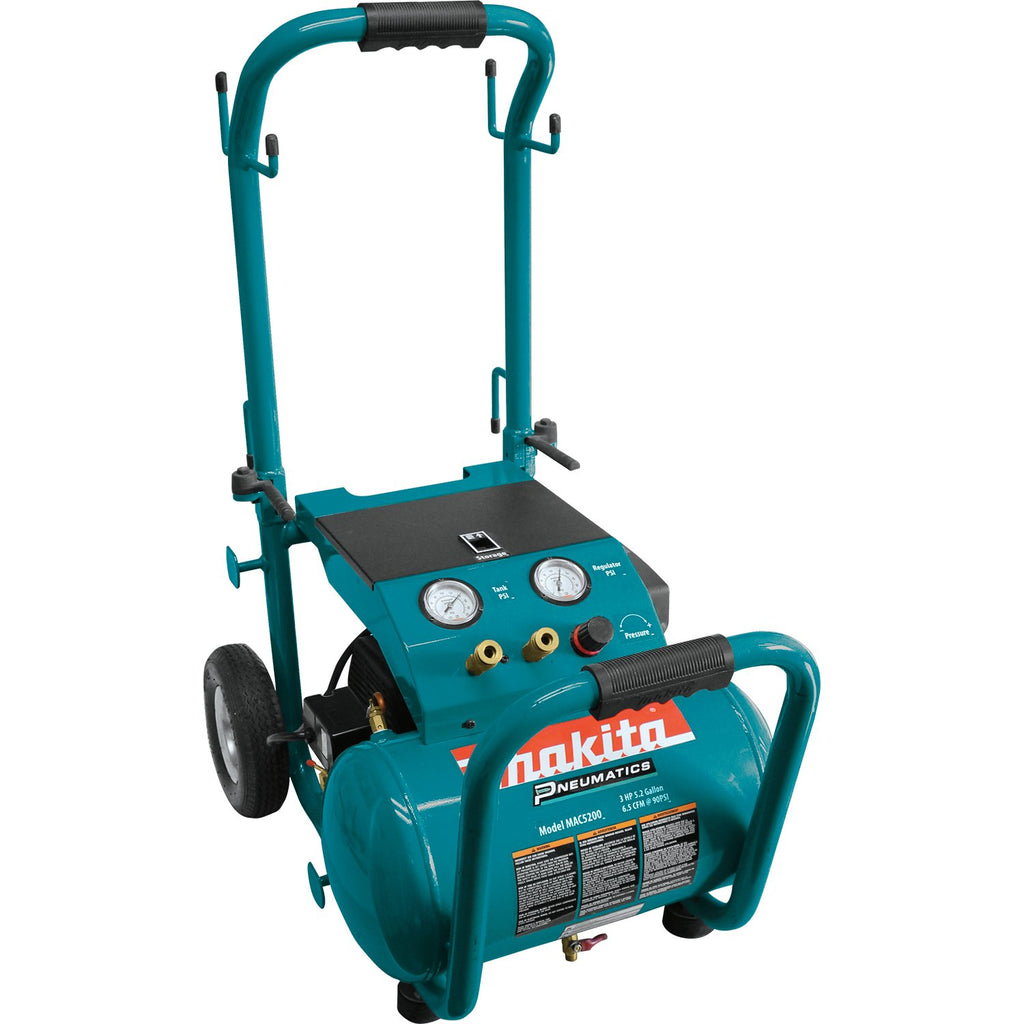

3.0 HP* Big Bore™ Air Compressor (MAC5200)

• POWER : 6.5 CFM @ 90PSI; Powerful enough to run two framing nailers
• PERFORMANCE : Cast iron cylinder with greater bore and stroke for maximum performance
• DURABILITY : Roll cage construction for extra protection to pump and motor assembly
• CONVENIENCE : Oil drain and oil sight glass conveniently located for easy access and maintenance
• INCLUDES : Oil and 1/4” universal quick couplers (2)

Product Features

• Cast iron pump with Big Bore™ cylinder and piston is engineered to provide faster recovery time for improved performance
• Powerful 3.0 HP motor produces 6.5 CFM at 90 PSI for increased productivity
• Pump is oil-lubricated for cooler running temperatures and reduced wear
• Durable cast iron cylinder reduces wear and increases pump life; removable for easy maintenance
• Folding handle with low profile design for easy storage with handle folded
• Rugged wheels for jobsite portability
• Built-in storage compartment conveniently stores air fittings and accessories
• Air hose wrap stores 50 ft. of 3/8" air hose with handle folded or upright
• Copper finned discharge tubing for increased heat dissipation and reduced water in the tank
• Tool hangers store tools when not in use
• Large automotive style industrial air filter for increased air intake and greater efficiency
• Roll cage construction for extra protection to pump and motor assembly
• Oil sight glass for fast, easy and efficient maintenance
• Lever-handle ball valve tank drain improves upon standard petcock design for easier maintenance and air tank release
• Convenient oil drain at the front of the pump for easy access
• Built-in thermal overload for additional motor protection

Product Specifications

• Maximum Horsepower : 3 HP
• Running Horsepower : 2.1 HP
• Tank : 5.2 gal.
• Performance (40 PSI) : 6.9 CFM
• Performance (90 PSI) : 6.5 CFM
• Maximum Pressure : 140 PSI
• Net Weight : 88 lbs.
• Pump Type : Oil-Lubricated
• Gas or electric : Electric
• Shipping Weight : 107 lbs.
• UPC Code : 088381-053549
