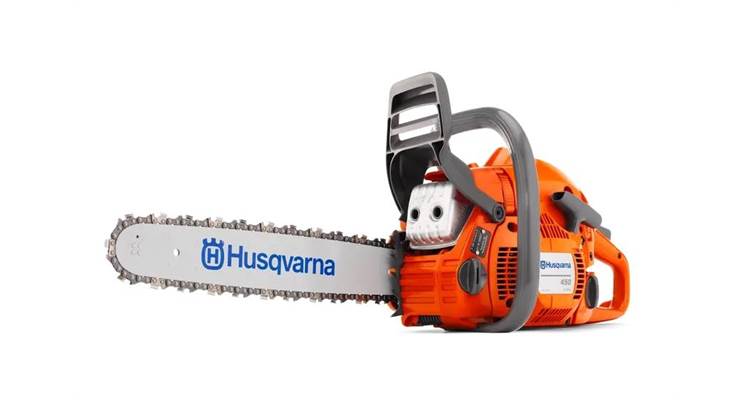

Second generation powerful all-round saw for people who value professional qualities in a saw. Starts easily also with a slower pull, comes with slimmer saw body and flip-up tank caps. The X-Torq® engine means lower fuel consumption and reduced emission levels. Auto return stop switch and visible fuel level makes the saw easier to handle. Equipped with Smart Start® and fuel pump to every time ensure easy starts.
Product Highlights
- Air Injection®: Less filter cleanings with Air Injection
- X-Torq®: X-Torq® engine cuts both emissions and fuel consumption.
- Flip-up tank cap: Flip-up fuel tank caps are easy to open and secure.
- Quick-release air filter: Quick-release air filter
- Auto return stop switch: Auto return stop switch for easy starting
- Ergonomic rear handle: Ergonomic soft grip rear handle
- Felling marks: Felling marks for correct felling direction
- Smart Start®: Smart Start® for easy starting
- Snap-lock cylinder cover: Easy to maintain with snap locked cylinder cover
- Three-piece crankshaft: Maximum durability for tough applications
- LowVib®: LowVib® sparing the user's arms and hands
- Visible fuel level: Fuel level window
- Air Purge: Air purge for easier cold starting
- Inertia activated chain brake: Increased safety, inertia activated chain brake
Product Specifications
Engine
Power output: 3.2 hp
Cylinder displacement: 50.2 cm³
Maximum power speed: 9,000 rpm
Idling speed: 2,700 rpm
Torque, max.: 2.6 Nm
Torque, max. at rpm: 7,200 rpm
Clutch engagement speed (±120): 4,300 rpm
Fuel consumption: 504 g/kWh
Electrode gap: 0.02 in
Ignition module air gap: 0.01 in
Oil pump type: Fixed flow
Exhaust emissions (CO2 EU V): 742 g/kWh
Equipment
Bar length (inch): 20 in
Recommended bar length, min-max: 13-20 in
Chain type: SP33G
Gauge: .050"
Pitch: .325"
Sprocket type: Spur 7
Dimensions
Weight (excl. cutting equipment): 11.2 lbs
Lubricant
Lubricant type: Husqvarna 2 stroke or equiv. at 50:1
Oil tank volume: 0.55 US pint
Sound and noise
Sound power level, guaranteed (LWA): 115 dB(A)
Sound power level, measured: 113 dB(A)
Sound pressure level at operators ear: 104 dB(A)
