Ultima Series™ Z2 54P (54" Zero Turn Mower w/AeroForce Deck)

Name: Ultima Series™ Z2 54P (54" Zero Turn Mower w/AeroForce Deck)
Brand: Cub Cadet
SKU: CUB-17FIEAEM010
Price: 3999.00 USD
Availability: InStock

New

Cub CadetSKU: CUB-17FIEAEM010

Price:

$3,999.00

Stock:

Only 2 units left

Quantity:

Available for store pickup and local delivery only

Pickup currently unavailable at Affton Lawn Equipment

Share this product

Category: Zero Turn Mower

Primary Use: Residential

Size: 54"

Power Type: Gas

Product Highlights

Answer the call of large properties and varying terrain with the Ultima Series™. The Cub Cadet® Ultima Series Z2 54P 54-in. 23 HP*/726cc Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck is designed to deliver uncompromised performance, durable strength, and proven results. Built with premium comfort features engineered to provide the ultimate mowing experience this mower helps you tackle hills and slopes up to 15-degrees. Save time mowing with an Ultima Series™ zero-turn, 25% faster than a tractor**

The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable 23 HP*/726cc Kawasaki® Engine.
Dual hydrostatic transmissions are designed to eliminate shifting and allow for quick and easy 7 MPH forward (3.5 MPH reverse) ground speeds for a smooth drive.
An AeroForce™ welded, heavy-duty fabricated deck delivers a signature cut with few clumps and stragglers, fine clippings and evenness.

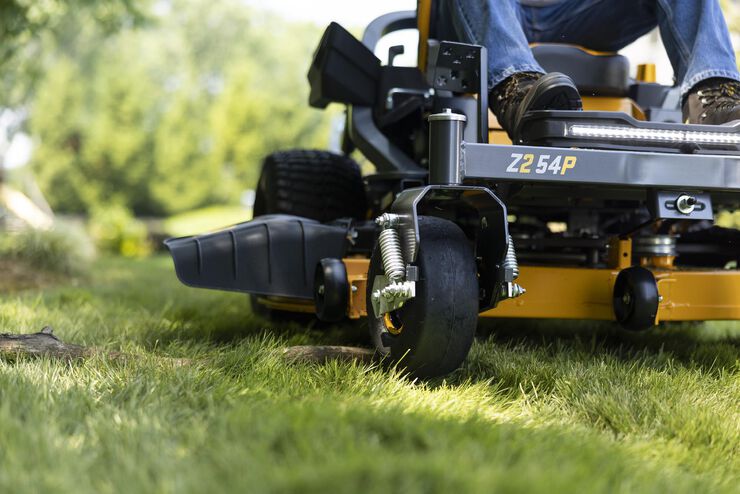

Ride in ultimate comfort thanks to a front caster suspension that delivers up to 1,050 lbs. of shock absorption to help reduce vibration.***

Specifications

Engine

Engine Brand: Kawasaki®
Engine Model: FR Series
Engine Model Number: 691V
Engine Displacement: 726cc
Engine Output: 23HP
Starter Type: Electric
Fuel Tank Capacity: 3.5 gal. US (13.25 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.1 qt US ( 2 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: No
Governor: Mechanical
Choke: Separate Choke
Air Filter: Single element
Oil Filter: Yes
Fuel Delivery: Carburetor

Battery

Battery: 230 CCA
Battery Type: Lead Acid
Battery Voltage: 12V

Drive System

Transmission: Hydro-Gear EZT 2200
Forward Speed: 7 MPH / 11.3 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h
Drive System: Hydrostatic

Cutting Deck

Deck Cutting Width: 54 in
Deck Wash: No
Deck Material: 11-gauge steel
Deck Engagement (PTO): Electric
Deck Construction: Fabricated
Blade(s): Three
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1'' - 4.5''
Anti-Scalping: Three gauge wheels
Deck Positions: 15

Chassis

Frame: 2'' x 2'' tubular steel
Turning Radius: 0°
ROPS: No
Rear Tow Hitch: Yes
Corrosion Protection: Yes
Front Caster Yokes: 5/16" Steel

Controls

Cruise Control: No
Handle Grip(s): Ergonomic Overmolded Soft Touch
Brakes: Disc
Steering Control: Lap Bars

Comfort

Seat Type: 20" Cut-and-Sew with Head Bolster
Armrests: No
Seat Adjustment: Knob
Front Caster Suspension: Yes

Wheels

Rear Tires: 20''x 10''- 8''
Front Tires: 11"x 6"-5"
Tire Tread: Turf Armor

Specifications

Series: Ultima Series™ Z

Additional Specifications

Hour Meter: Yes
Mulch Kit: Available separately
Headlight(s): LED Lightbar
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Lap Bar Integrated
Model Number: 17FIEAEM010

Warranty

Residential Warranty: 3-year unlimited hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime limited
Commercial Warranty: No

Disclaimers

Specifications: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Horsepower: As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
Efficiency: **Mowing identical grass conditions using a 42-inch Ultima Series zero-turn mower at a speed of 7 MPH vs. a Cub Cadet® 42-inch lawn tractor at a speed of 5 MPH.
Caster Suspension: ***Based on each wheel taking 385lbs of force for up to a total of 770lbs of resistance/impact loading.
LED Lightbar: Front LED Light Bar vs. Cub Cadet® Classic Twin LED Headlights 625-05041, measured in total lumens.
