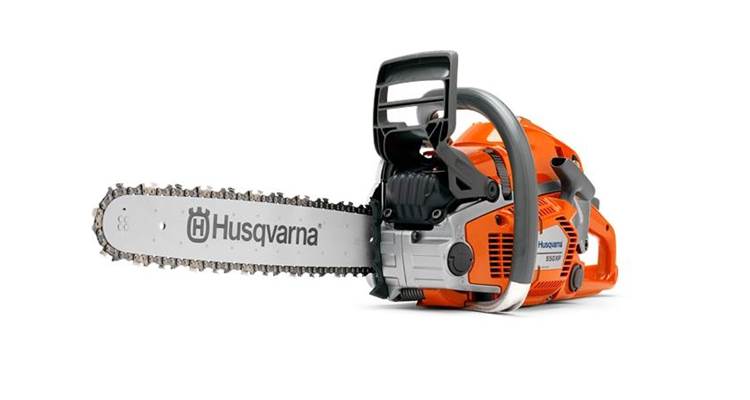

Category: Rear Handle Chainsaws
Primary Use: Commercial
Power Type: Gas
FeaturesFlip-up tank cap: The flip-up tank cap is easy to open and close when refueling.
X-Torq®: Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
AutoTune: AutoTune gives optimal engine performance throughout automatic engine setting.No time spent on carburetor adjustments. It compensates fordifferent fuels, altitude, humidity, temperature and clogged air filter.
Air Injection: Centrifugal air cleaning system removes larger dust and debris particles before reaching the air filter. This results in reduced air filter cleanings and improved engine life.
Cylinder displacement: 50.1 cm³
Cylinder displacement: 3.06 cu.inch
Power output: 3.75 hp
Maximum power speed: 10200 rpm
Fuel tank volume: 1.1 US pint
Fuel consumption: 446 g/kWh
Idling speed: 2800 rpm
Spark plug: NGK CMR6H
Electrode gap: 0.02 in
Torque, max.: 2.8 Nm
Recommended bar length, max: 20 in
Recommended bar length, min: 13 in
Chain pitch: .325"
Chain gauge: 0.05 in
Chain speed at 133% of maximum engine power speed: 85.63 fts
Weight (excl. cutting equipment): 10.8 lbs
Oil tank volume: 0.57 US pint
Oil pump type: Automatic
Oil pump capacity Max: 12 ml/min
Oil pump capacity Min: 5 ml/min
Sound and Noise
Sound power level, guaranteed (LWA): 116 dB(A)
Sound power level, measured: 114 dB(A)
Sound pressure level at operators ear: 106 dB(A)
Equivalent vibration level (ahv, eq) front handle: 3.8 m/s²
Equivalent vibration level (ahv, eq) rear handle: 3.7 m/s²
