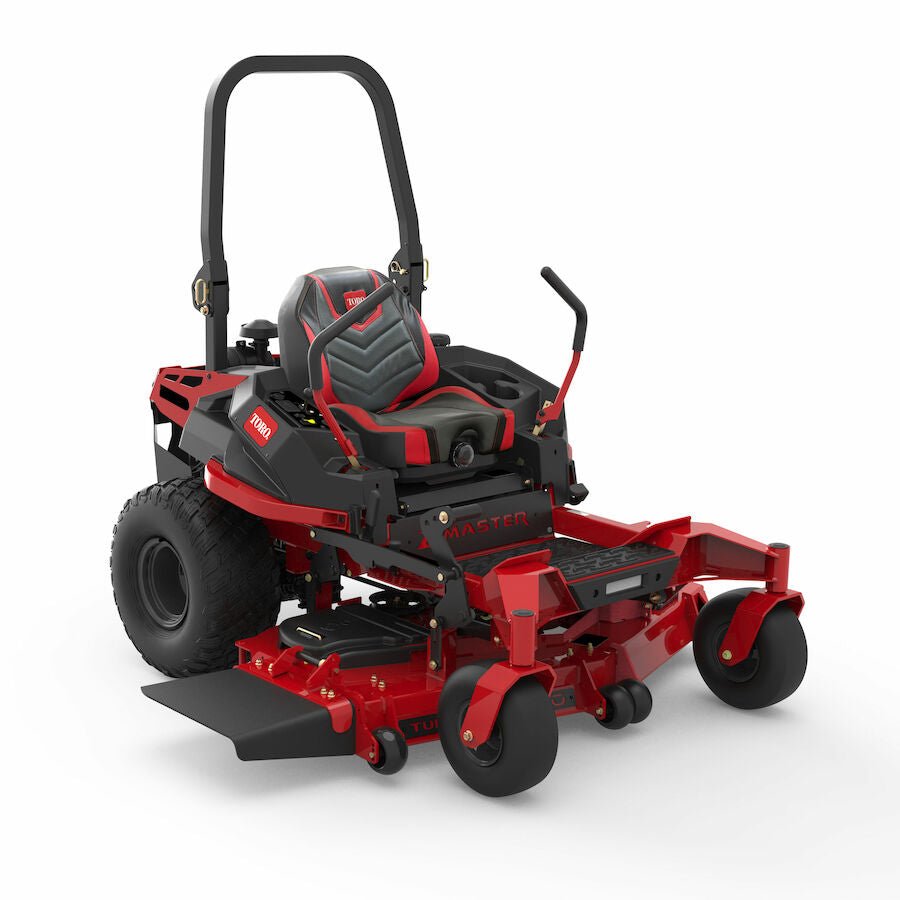

The Toro Z Master 4000 model 77294 is a commercial-grade zero-turn mower designed for professional landscapers and groundskeepers. It features a powerful 24.5 horsepower Toro V-Twin engine, a 60-inch Turbo Force cutting deck, and a deluxe suspension seat for maximum operator comfort.
One of the key benefits of the Z Master 4000 is its exceptional maneuverability and speed, thanks to its zero-turn capability and top speed of up to 10 mph. The Turbo Force cutting deck provides a clean and precise cut, even in tough mowing conditions.
Other notable features of the Z Master 4000 include a durable design with a welded steel frame and deck, easy access to maintenance areas, and a convenient foot-operated deck lift system. Overall, the Toro Z Master 4000 is a reliable and efficient mower that can help professionals save time and achieve great results.
Product Highlights
- TURBO FORCE® Cutting Deck - Built to last. Enjoy years of reliable performance with an upgraded 7-gauge steel, 5.5" deep deck.
- 24" Voodoo Trac™ Drive Tires - Get the ultimate in aggressive tread and styling with 24" Voodoo Trac™ Drive Tires.
- Get commercial-grade performance with a 24.5 hp* Toro V-twin engine.
- Customize your ride with optional lights, bucket holder, trimmer mount, baggers, mounts, and up to 20 attachments.
Product Specifications
| Anti Scalp Wheels |
Standard |
| Blade Tip Speed |
18,500 ft/min / 5,638 m/min |
| CARB Compliant |
CARB Compliant |
| Caster Tires |
13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic |
| Clutch |
Electromagnetic |
| Cutting Width |
60 in. / 152 cm |
| Deck Design |
5.5” (14 cm) deck depth, 7-Gauge High-Strength Steel TURBO FORCE® w/ bull-nose bumper |
| Discharge Chute |
Rubber |
| Drive Tires |
Voodoo Trac 24 in. x 9.5 in. - 12 in. (61 x 24.1 - 30.5 cm) |
| Engine |
24.5 hp* Toro V-Twin 708 cc with Heavy Duty Air Cleaner |
| Engine Brand |
Toro |
| Engine Displacement (cc) |
708 cc |
| Engine Horsepower |
24.5 hp |
| Foot Operated Height of Cut |
Standard |
| Forward Ground/Transport Speed |
Up to 10.0 mph / 16.0 kph |
| Fuel Capacity |
7 gal. / 26.5 L / 28 Qt. |
| Fuel Type |
Gasoline |
| Height of Cut |
1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.25 in (0.64 cm) increments |
| Hitch Bracket |
Standard |
| Hour Meter |
Standard Hour Meter |
| Ignition |
Electric |
| Lighting |
LED Headlights |
| Notes: |
Hitch: Integrated Receiver Hitch - 2 in. x 2 in. 80 lbs. (36.3 kg) max tongue, 250 lbs. (113.4 kg) max tow |
| Product Type |
Zero Turn Mower |
| Product Use |
Commercial |
| Roll-Over Protection (ROPS) |
Folding; Standard |
| Spindle Housing |
8 in / 20.3 cm Diameter Aluminum (Non Greasable) Ball Bearing, 1 in / 2.5 cm Shaft |
| Start Type |
Electric |
| Steering Controls |
1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened |
| Tool Mounting Capability |
Side Console / Rear Guard Ready |
| Transmission |
Hydro-Gear ZT-3400 |
Disclaimer
Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
*The gross horsepower of these engines was laboratory rated by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.
