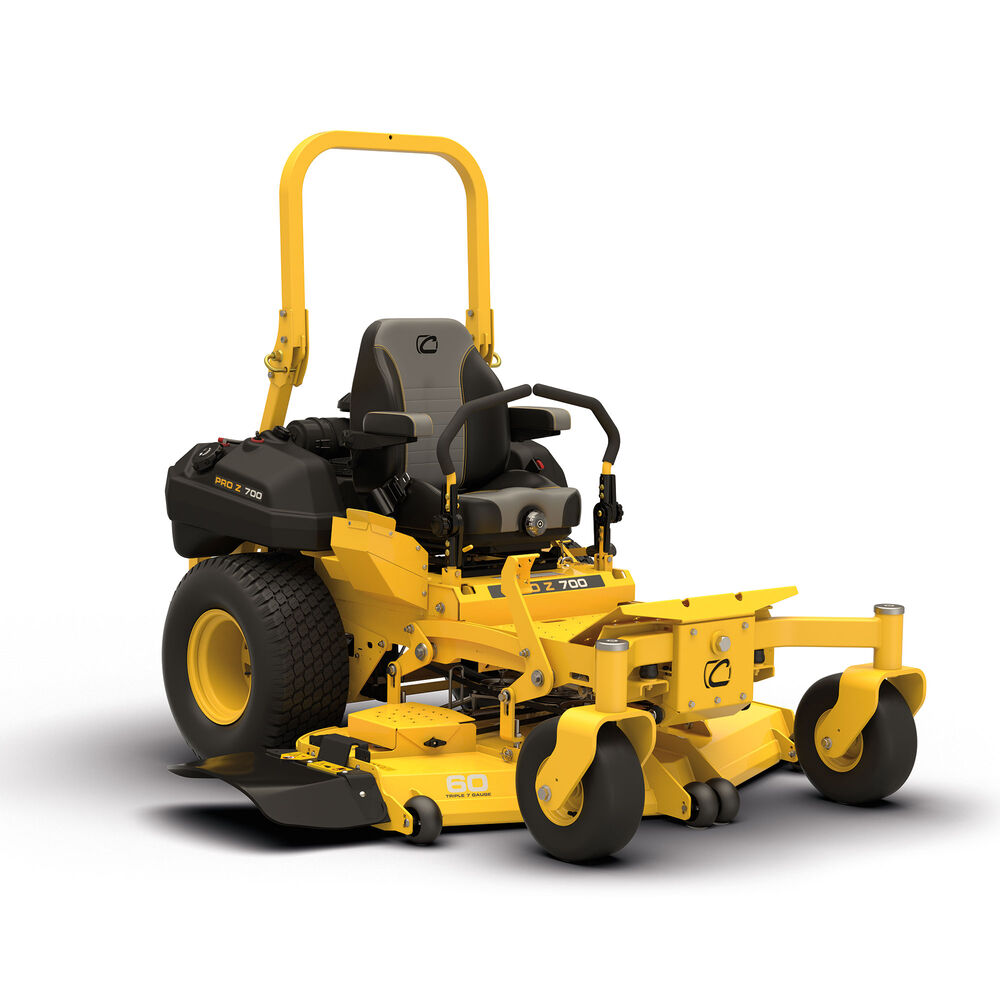

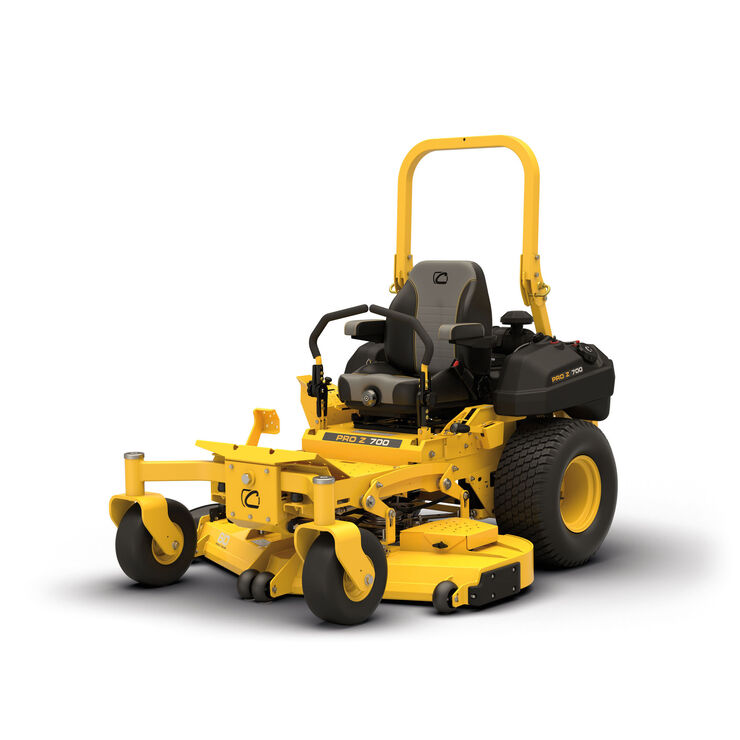

Cub Cadet PRO Z 760L Commercial Zero Turn

Roll over image to zoom in Click on image to zoom

Cub Cadet PRO Z 760L Commercial Zero Turn

Name: Cub Cadet PRO Z 760L Commercial Zero Turn
Brand: Cub Cadet
SKU: CUB-53TIHTTVA50
Price: 11983.89 USD
Availability: OutOfStock

Save $3,000.00

Cub CadetSKU: CUB-53TIHTTVA50

Price:

$11,983.89 $14,983.89

Stock:

Call to Order

Quantity:

Available for store pickup and local delivery only

Pickup currently unavailable at Affton Lawn Equipment

Share this product

Category: Commercial Zero Turn

Primary Use: Commercial

Size: 60"

Power Type: Gas

Product Highlights

The Cub Cadet® PRO Z 760 L 60-in. 31 HP* Commercial Zero-Turn Lawn Mower features a triple 7-gauge fabricated steel cutting deck with top and bottom reinforcements. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime. Hydro-gear transmissions engineered for quick ground speeds and smooth handling.

31 HP Kawasaki FX921v (999cc) engine and 12cc Hydro-Gear transmission
60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty

Specifications

Engine

Engine Brand: Kawasaki®
Engine Model: FX Series
Engine Model Number: 921V
Engine Displacement: 999cc
Engine Output: 31HP
Fuel Tank Capacity: Dual 7.45 gal. US (28.2 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.0 qt. US (1.89 L)
Lubrication: Fully pressurized
Charging System: 15 amp regulated
Choke: Separate Choke
Air Filter: High Density
Oil Filter: Yes
Fuel Delivery: Carburetor

Drive System

Transmission: 12cc Hydro-Gear 4400
Forward Speed: 12 mph / 19 km/h
Reverse Speed: 6 mph / 9.5 km/h

Cutting Deck

Deck Cutting Width: 60 in
Deck Material: fabricated 7ga. (.187”) steel shell
Deck Engagement (PTO): electronic fingertip engagement pto
Deck Construction: 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge
Spindle Construction: 8" sealed cast aluminum housing (maintenance-free)
Blade(s): 3 high-lift Marbain® blades / 18,500 fpm (approx.)
Cutting Height Range: 1” to 5” in 1/4” increments
Anti-Scalping: 2 front deck gauge wheels
Deck Positions: Foot pedal with spring assist 16 Positions

Chassis

Frame: Fully welded, full-length 3/8 x 5" laser cut steel / integrated tie-down slots
Front Axle: 2" x 3" solid axle tube with ISO dampening suspension
ROPS: 2" x 2" spring-latch tool-less foldable 3 position
Bumper: 5/16" Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
Front Caster Yokes: 1/2" thick steel front yokes

Controls

Cruise Control: NA
Brakes: Hand-operated
Steering Control: High Performance & Speed Control

Comfort

Seat Type: Cushion with seat belts
Armrests: Padded arm rests
Seat Suspension: High-back dial suspension with EVC, ISO mounted base (lateral suspension)
Seat Adjustment: Angle back adjust and lumbar support

Wheels

Rear Tires: 24"x12"-12"
Front Tires: 13"x6.5"-6"Reliance Carlisle run-flat
Tire Tread: Turf Tread

Additional Specifications

Hour Meter: Crew Boss
Discharge Chute: High-density, impact-resistant rubber
Cup Holder: Intergrated into Side Pod
Model Number: 53TIHTTVA50

Warranty

Commercial Warranty: 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour

Disclaimers

Specifications: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Horsepower*As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
