Product Highlights
The PILOT 200 model has the same vacuum power and performance of our step-up models, but with a simplified collector design. It unloads with an easy, 2-step action, and the underlying frame doubles as a flatbed trailer. The result is great performance at a terrific price!
PILOT 200 Model
The PILOT 200 model gives you all the amazing suction power you'll find on our larger models with a simplified collector and unloading mechanism. The underlying frame can also be used as a flatbed trailer (rather than the cart-style trailer found on the other models).

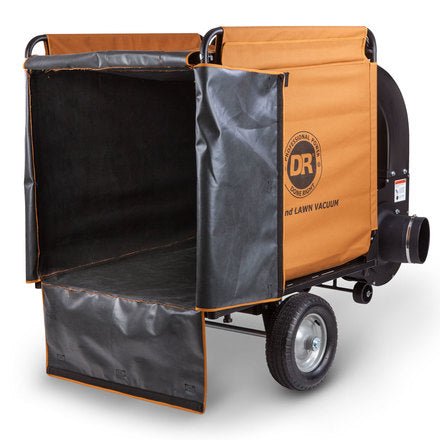

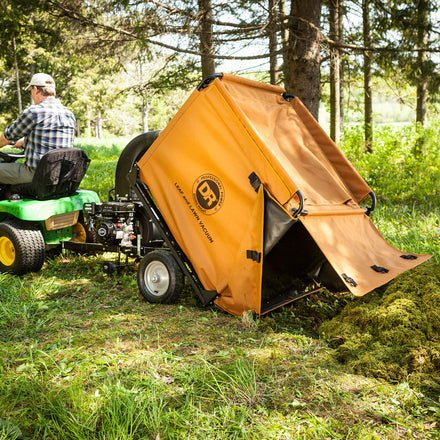

The 200-gallon collector can be fully unloaded in two easy steps: 1) simply unbuckle the closures on the back, and 2) release the lock lever from the front and tilt the entire collector to the rear. The steep dump angle ensures that the load empties completely.
With the collector removed, you can use the PILOT 200 as a flatbed trailer to haul all sorts of loads around your property. It's perfect for stackable and tie-down items.
PILOT 200 Model Product Summary
- 200 Gallon capacity (27 cu. ft.)
- Single Point Hitch
- Optional jack stand available
- DR OHV Engine; 6.6 HP (9.59 ft-lbs gross torque*)
- Manual-Starting
- Weight: 230 lbs
Lawn Tractor Requirements:
Warranty Coverage
- Machine: 2 years residential; 90 days commercial
- Engine: 2 years residential; 1 year commercial
Specifications
| Dimensions |
| Height |
52.375 in |
| Length |
80 in |
| Shipping Weight |
344 lbs |
| Weight |
230 lbs |
| Dumping |
| Dumping Capacity |
27 Cubic Feet |
| Engine |
| Air Filter |
Dual Element |
| Cooling Methods |
Air |
| Engine Type |
OHV |
| Ft Lbs Torque |
*9.59 ft-lbs gross torque (per SAE J1940) |
| Horsepower |
6.6 HP |
| Lubrication |
Splash |
| Make |
DR |
| Number Of Cylinders |
1 |
| Oil Capacity |
16.9 oz. |
| Oil Type |
SAE 30W HD |
| Starting Type |
Manual |
| Fuel_System |
| Fuel Capacity |
3.6 quarts |
| Hauling |
| Hauling Capacity |
27 Cubic Feet |
| Weight Capacity |
400 lbs |
| Wheels_Tires |
| Dimensions |
5.30/4.50-8 4 ply |
| Number of Tires |
2 |
| Tire Size |
14in x 4.5in |
| Tread |
Sawtooth |
| Warranty |
| Engine Warranty |
2 yrs Residential Use/1 yr Commercial |
| Machine Warranty |
2 yrs Residential Use/1 yr Commercial |
| Rotor |
| Rotor Speed |
147 mph |
| Rotor Weight |
13 lbs |
| Material |
| Frame |
Welded Steel |
