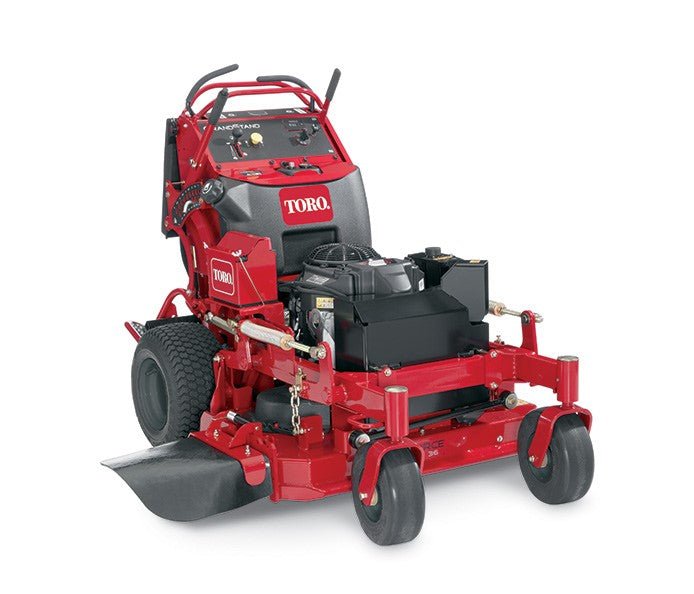

GrandStand® 36" 15 HP 603cc (74534)

Product Highlights

• Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
• Toro's foldable operator platform instantly converts the GrandStand to a walk-behind. It easily lowers back down when its time to ride – saving time, money and trailer space by eliminating the need to switch mowers.
• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
• With hefty cast iron spindles including maintenance free bearings plus only annual grease points, there will be less need for routine maintenance. That means less time spent off your mower and more time generating profits with it.

Product Specifications

• Engine
  15 HP* (11 kw) Kawasaki® FS541V 603cc
• Fuel Capacity
  Gasoline - 7.8 gallons (29.5 L)
• Cutting Width
  36" (91.4 cm)
• Blade Tip Speed
  18,500+ ft/min (5,640 m/min)
• Blade Type
  .25" (.6 cm) heat-treated steel
• Carrier Frame
  3" x 1.5" x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
• Caster Tires
  11" x 4" - 5" (28 cm x 10.2 cm - 12.7 cm) flat-free semi-pneumatic
• Clutch
  Electromagnetic
• Controls
  Twin lever
• Deck Design
  7-gauge 36" (91 cm) TURBO FORCE® with bull-nose bumper
• Discharge Chute
  Rubber
• Drive System
  Pumps (10cc/rev) & Wheel Motors (10 cir)
• Drive Tires
  18" x 8.5" - 8" (46 cm x 22 cm - 20 cm)
• Engine Displacement
  603cc
• Ground Speed
  8.0 mph forward (12.9 km/h)
• Height of Cut
  1" - 5" in 1/4" (2.5 cm - 12.7 cm in 6 mm) increments
• Hour Meter
  Standard
• Hydraulic Fluid
  Premium synthetic
• Comfort Platform
  Foldable Operator Platform with Suspension
• Spindle Bearings
  Maintenance-free
• Spindle Housing
  9 3/8" (23.8 cm) diameter cast iron
• Weight
  833 lbs. (377.8 kg)
• Disclaimer
  * The gross horsepower of these engines was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAEJ2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.
