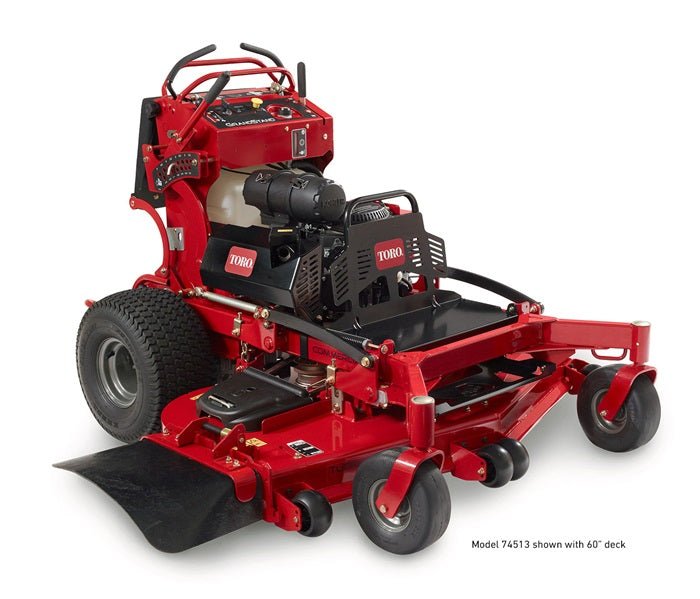

GrandStand® 48" 22 HP 726cc (72504)

Product Highlights

• Improve productivity with easy access on and off the machine with up to 10.5 gallons of fuel capacity to mow longer with fewer stops.
• Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
• Toro's foldable operator platform instantly converts the GrandStand to a walk-behind. It easily lowers back down when its time to ride – saving time, money and trailer space by eliminating the need to switch mowers.
• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.

Specifications

• Engine
  22 hp (16.4 kw) Kawasaki FX 726cc
• Fuel Capacity
  Gas/10.5 gal (39.7 L)
• Cutting Width
  48" (122 cm)
• Adjustable Discharge Baffle
  Standard
• Air Filter
  Heavy-Duty Canister Air Cleaner
• Blade Tip Speed
  18,500+ ft/min
• Blade Type
  .25" (.6 cm) heat-treated steel
• Carrier Frame
  3" x 1.5" (7.6 cm x 3.8 cm) x 12 gauge
• Caster Tires
  11" x 5"-5" (28 x 13-13 cm) flat free semi-pneumatic
• Clutch
  Electromagnetic
• Deck Design
  80-grade 7-gauge 48" (122 cm) TURBO FORCE® w/bull-nose bumper
• Discharge Chute
  Rubber
• Drive System
  Pumps (10cc/rev) & Wheel Motors (10 cir)
• Drive Tires
  20" x 10.5"- 8" (51 x 26.67 - 20 cm)
• Engine Displacement
  726cc
• Ground Speed
  Up to 10 mph forward (16.1 km/h)
• Height of Cut
  1" - 5" in 1/4" (2.5 cm - 12.7 cm in 6 mm) increments
• Hour Meter
  Standard
• Hydraulic Fluid
  Premium synthetic
• Spindle Bearings
  Greaseless ball bearings
• Spindle Housing
  9" (22.9 cm) diameter cast aluminum
• Steering Controls
  Twin lever
• Weight
  890 lbs. (403.7 kg)
