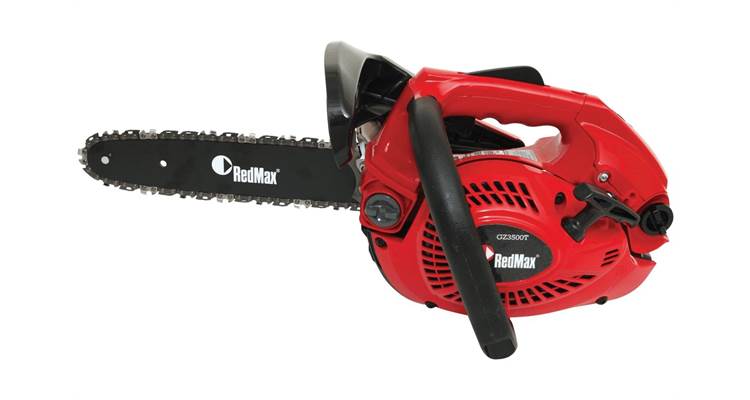

GZ3500T-14 (3/8,.050)

The 3500T is a commercial-duty, high-torque arborist chainsaw designed for tree care professionals. The 3500T includes the MaxLogic ignition system which provides quick and easy starts with lightening acceleration.

Specifications

Dimensions

Weight (excl. cutting equipment): 7.5 lbs

Engine

Cylinder displacement: 35.2 cm³
Cylinder displacement: 2.15 cu.inch
Power output: 2.01 hp
Maximum power speed: 10000 rpm
Fuel tank volume: 8.4 fl oz
Idling speed: 2900 rpm
Spark plug: NGK CMR6H
Electrode gap: 0.03 in
Torque, max.: 1.57 Nm

Equipment

Recommended bar length, max: 16 in
Recommended bar length, min: 12 in
Chain speed at max power: 62.7 fts

Lubricant

Oil tank volume: 0.36 US pint
Oil pump type: Adjustable flow, no flow at idle

Vibration

Equivalent vibration level (ahv, eq) front handle: 5.1 m/s²
Equivalent vibration level (ahv, eq) rear handle: 4.6 m/s²
