Category: Extendable Pole Pruners
Primary Use: Commercial
Power Type: Gas

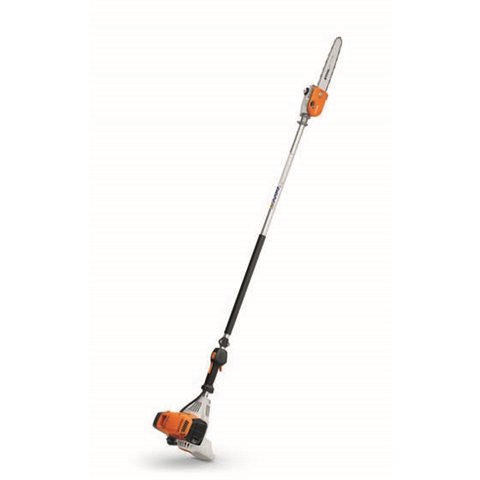

Built with the same features as the previous HT 132 fixed-length pole pruner, but with a field-proven, tough metal gearbox, with a durable metal branch hook, 3/8” STIHL PICCO™ Micro™ Mini saw chain (61 PMM3) and a 14” guide bar.
Balanced design makes it comfortable to use.
Reduced-Emission Engine Technology - Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Common Features for Pole Pruners
View the features common to many STIHL pole pruners.
STIHL has a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
Multi-Function Control Handle
Having easy access to all of the controls on one comfortable handle helps makes it easier to complete tasks so the operator’s hand never has to leave the handle.
Purge Pump Primer
At the press of a button, this small fuel pump delivers fuel to the carburetor, reducing the number of starting pulls needed after an extended break between uses.
Built in the USA
A majority of STIHL gasoline-powered units sold in the United States are built in the United States from domestic and foreign parts and components.
IntelliCarb™ Compensating Carburetor
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As their air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize the air from the “dirty” side of the air box.
Tough metal gearbox with durable metal branch hook
The new lightweight gearbox design provides high-speed precision while pruning, allowing for easy handling when reaching for high branches
Vertical pleated paper air filter
Thanks to better air filtration due to its greater surface area, the vertical pleated paper air filter can extend the time between servicing.
Semi-automatic choke lever
The semi-automatic choke lever enables the simplified three-step start procedure, saving users time and allowing them to start jobs faster
One-touch stop button
Users can save time and reduce the chance of flooding thanks to the one-touch stop button, which allows the engine to be shut off with the simple press of a button
3/8’’ STIHL PICCO™ Micro™ Mini saw chain (61 PMM3)
A durable saw chain that sharpens easily and delivers fast, smooth, clean cuts with reduced vibration compared to the previous model.
Outboard mounting of guide bar and saw chain mounting
Outboard mounting of guide bar and saw chain allow for better flush cutting than other designs.
|HT 134 Specifications|
|GUIDE BAR LENGTH (Recommended)||14 in.|
|OILOMATIC® CHAIN||3/8" PMM3|
|CHAIN OIL CAPACITY||7.4 oz.|
|ENGINE POWER||1.9 bhp|
|FUEL CAPACITY||17.9 oz.|
|DISPLACEMENT||2.2 cu. in.|
