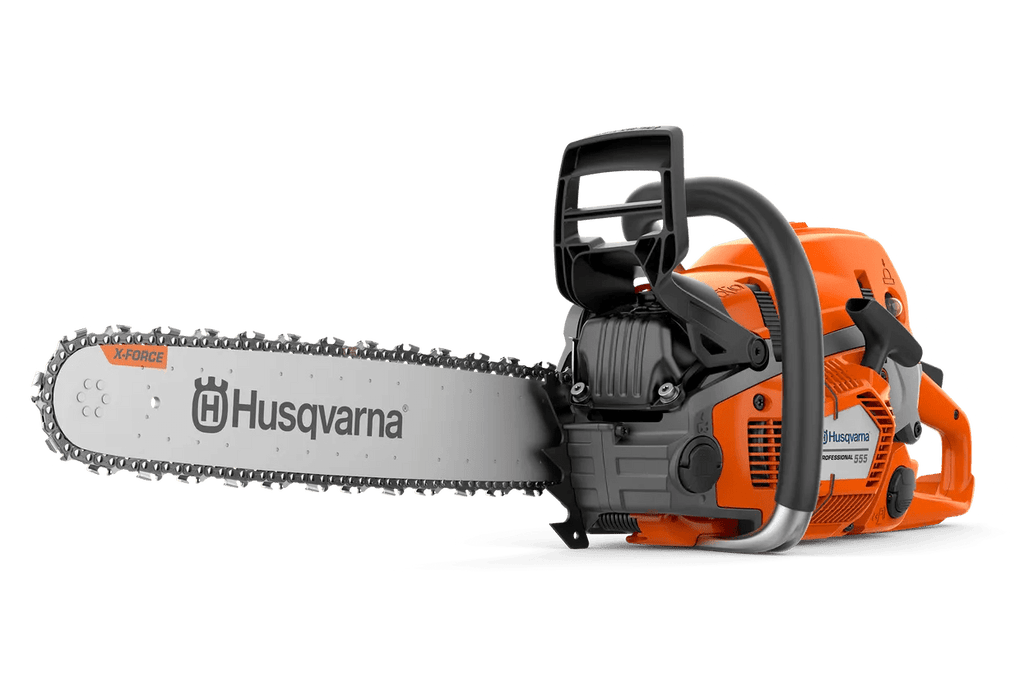

HUSQVARNA 555

Name: HUSQVARNA 555
Brand: Husqvarna
SKU: HUS-970501408
Price: 749.99 USD
Availability: OutOfStock

HusqvarnaSKU: HUS-970501408

Bar Length: 18"

Variant

Price:

$749.99

Stock:

Call to Order

Quantity:

Available for store pickup and local delivery only

Pickup currently unavailable at Affton Lawn Equipment

Share this product

Category: Chainsaws

Primary Use: Commercial

Size:

Power Type: Gas

Product Highlights

Professional 60cc chainsaw for demanding all-round forestry work

Husqvarna 555 is developed for demanding work by contractors and land owners. The saw has a ground breaking design and is loaded with raw power for efficient operation. Our unique X-Torq® engine technology provides more power where you need it, up to 20% less fuel consumption and 60% less exhaust emission.

Specifications

Engine	18" RSN 3/8" 1,3 mm C83 SKU: 970 50 14‑04	18" RSN 3/8" 1,5 mm C85 SKU: 970 50 14‑05	20" RSN 3/8" 1,3 mm C83 SKU: 970 50 14‑06	20" RSN 3/8" 1,5 mm C85 SKU: 970 50 14‑07	24" RSN 3/8" 1,3 mm C83 SKU: 970 50 14‑08	24" RSN 3/8" 1,5 mm C85 SKU: 970 50 14‑09
Chain speed at max power	69.9 fts	69.9 fts	69.9 fts	69.9 fts	69.9 fts	69.9 fts
Cylinder displacement	59.8 cm³	59.8 cm³	59.8 cm³	59.8 cm³	59.8 cm³	59.8 cm³
Output shaft power¹	4.16 hp	4.16 hp	4.16 hp	4.16 hp	4.16 hp	4.16 hp
Torque, max.	3.51 Nm	3.51 Nm	3.51 Nm	3.51 Nm	3.51 Nm	3.51 Nm
Torque, max. at rpm	6,100 rpm	6,100 rpm	6,100 rpm	6,100 rpm	6,100 rpm	6,100 rpm
Clutch engagement speed (±120)	4,300 rpm	4,300 rpm	4,300 rpm	4,300 rpm	4,300 rpm	4,300 rpm
Electrode gap	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in
Idling speed	2,800 rpm	2,800 rpm	2,800 rpm	2,800 rpm	2,800 rpm	2,800 rpm
Ignition module air gap	0.01 in	0.01 in	0.01 in	0.01 in	0.01 in	0.01 in
Maximum power speed	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm
Oil pump type	Adjustable flow	Adjustable flow	Adjustable flow	Adjustable flow	Adjustable flow	Adjustable flow
Spark Plug	NGK CMR6H	NGK CMR6H	NGK CMR6H	NGK CMR6H	NGK CMR6H	NGK CMR6H
Equipment
Recommended bar length, min	13 in	13 in	13 in	13 in	13 in	13 in
Pitch	3/8"	3/8"	3/8"	3/8"	3/8"	3/8"
Recommended bar length, max	24 in	24 in	24 in	24 in	24 in	24 in
Chain type	C83	C85	C83	C85	C83	C85
Bar length	45 cm	45 cm	50 cm	50 cm	60 cm	60 cm
Bar length (inch)	18 in	18 in	20 in	20 in	24 in	24 in
Gauge		.058"		.058"		.058"
Dimensions
Weight (excl. cutting equipment)	13.01 lbs	13.01 lbs	13.01 lbs	13.01 lbs	13.01 lbs	13.01 lbs
Sound and noise
Sound pressure level at operators ear	106 dB(A)	106 dB(A)	106 dB(A)	106 dB(A)	106 dB(A)	106 dB(A)
Sound power level, guaranteed (LWA)	118 dB(A)	118 dB(A)	118 dB(A)	118 dB(A)	118 dB(A)	118 dB(A)
Sound power level, measured	116 dB(A)	116 dB(A)	116 dB(A)	116 dB(A)	116 dB(A)	116 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle	5 m/s²	5 m/s²	5 m/s²	5 m/s²	5 m/s²	5 m/s²
Equivalent vibration level (ahv, eq) front handle	3.2 m/s²	3.2 m/s²	3.2 m/s²	3.2 m/s²	3.2 m/s²	3.2 m/s²
Lubricant
Oil tank volume	0.7 US pint	0.7 US pint	0.7 US pint	0.7 US pint	0.7 US pint	0.7 US pint
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO₂ EU V)²	819 g/kWh	819 g/kWh	819 g/kWh	819 g/kWh	819 g/kWh	819 g/kWh
