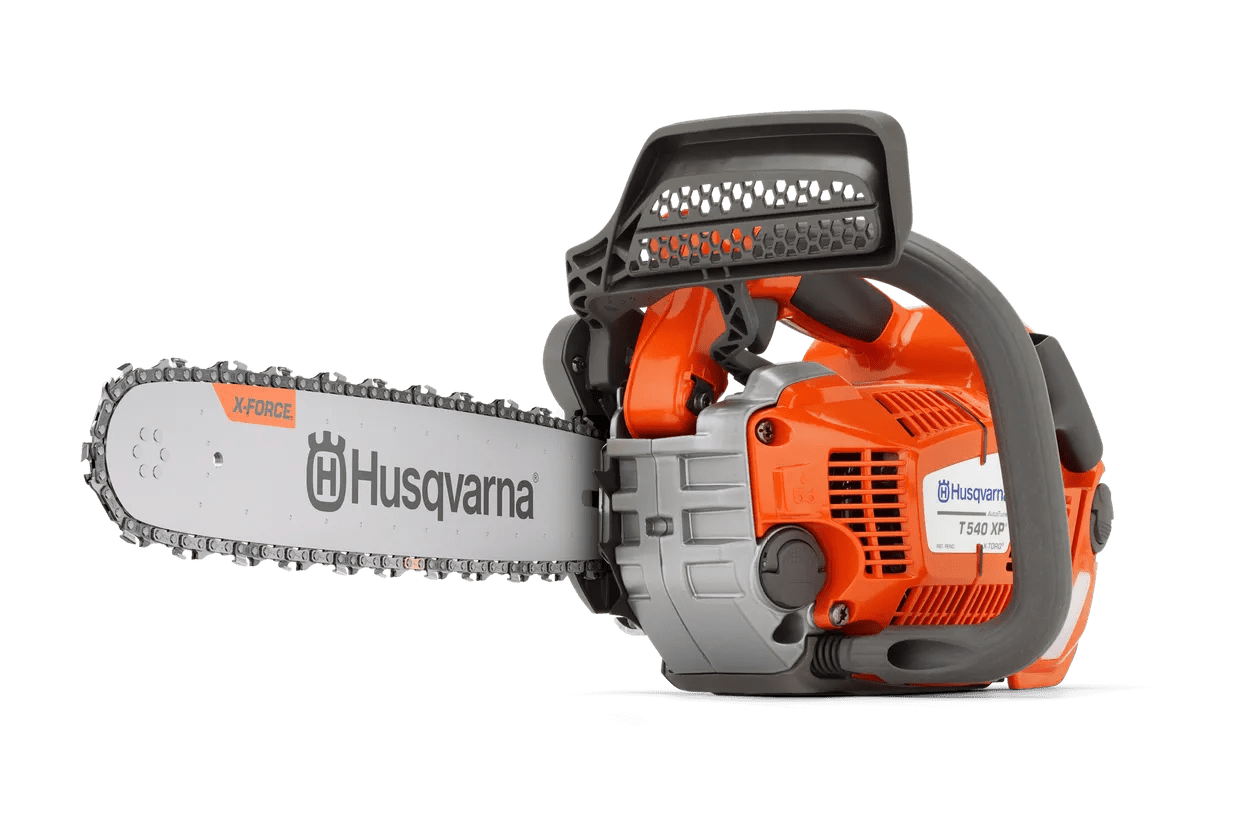

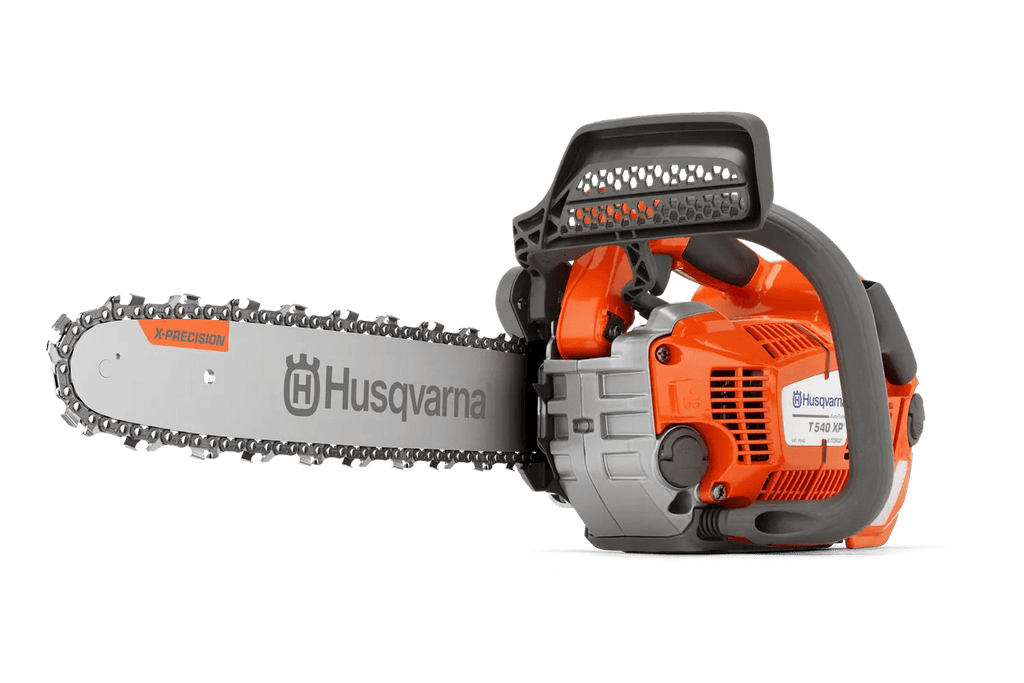

HUSQVARNA T540 XP® II

Name: HUSQVARNA T540 XP® II
Brand: Husqvarna
SKU: HUS-970484014
Price: 629.99 USD
Availability: OutOfStock

HusqvarnaSKU: HUS-970484014

Bar Length: 14"

Variant

Price:

$629.99

Stock:

Call to Order

Quantity:

Available for store pickup and local delivery only

Pickup currently unavailable at Affton Lawn Equipment

Share this product

Category: Top-Handle Chainsaw

Primary Use: Commercial

Size:

Power Type: Gas

Product Highlights

Powerful 38cc top-handle chainsaw for professional tree climbers

Husqvarna T540 XP® is designed for the high-end top handle saw segment, targeting professional customers like full pro arborists, landscapers, garden contractors and utility services who need excellent performance in combination with the best ergonomics.

Specifications

Engine	14" SP21G SN SKU: 970 48 40‑14	16" SP21G SN SKU: 970 48 40‑16
Chain speed at max power	63.65 fts	63.65 fts
Cylinder displacement	37.7 cm³	37.7 cm³
Output shaft power¹	2.4 hp	2.4 hp
Torque, max.	1.83 Nm	1.83 Nm
Torque, max. at rpm	140 rpm	140 rpm
Clutch engagement speed (±120)	4,500 rpm	4,500 rpm
Electrode gap	0.02 in	0.02 in
Idling speed	3,000 rpm	3,000 rpm
Ignition module air gap	0.01 in	0.01 in
Maximum power speed	10,200 rpm	10,200 rpm
Oil pump capacity, max	9 ml/min	9 ml/min
Oil pump capacity, min	3 ml/min	3 ml/min
Oil pump type	Adjustable flow	Adjustable flow
Spark Plug	NGK CMR6H	NGK CMR6H
Equipment
Recommended bar length, min	12 in	12 in
Pitch	.325" mini	.325" mini
Recommended bar length, max	16 in	16 in
Chain type	SP21G	SP21G
Bar length	35 cm	40 cm
Bar length (inch)	14 in	16 in
Sprocket type	Spur 6	Spur 6
Gauge	.043"	.043"
Dimensions
Weight (excl. cutting equipment)	8.6 lbs	8.6 lbs
Sound and noise
Sound pressure level at operators ear	104 dB(A)	104 dB(A)
Sound power level, guaranteed (LWA)	116 dB(A)	116 dB(A)
Sound power level, measured	114 dB(A)	114 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle	4.2 m/s²	4.2 m/s²
Equivalent vibration level (ahv, eq) front handle	3.5 m/s²	3.5 m/s²
Lubricant
Oil tank volume	0.42 US pint	0.42 US pint
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO₂ EU V)²	968 g/kWh	968 g/kWh

HUSQVARNA T540 XP® II

Description

Product Highlights

Powerful 38cc top-handle chainsaw for professional tree climbers

Specifications
