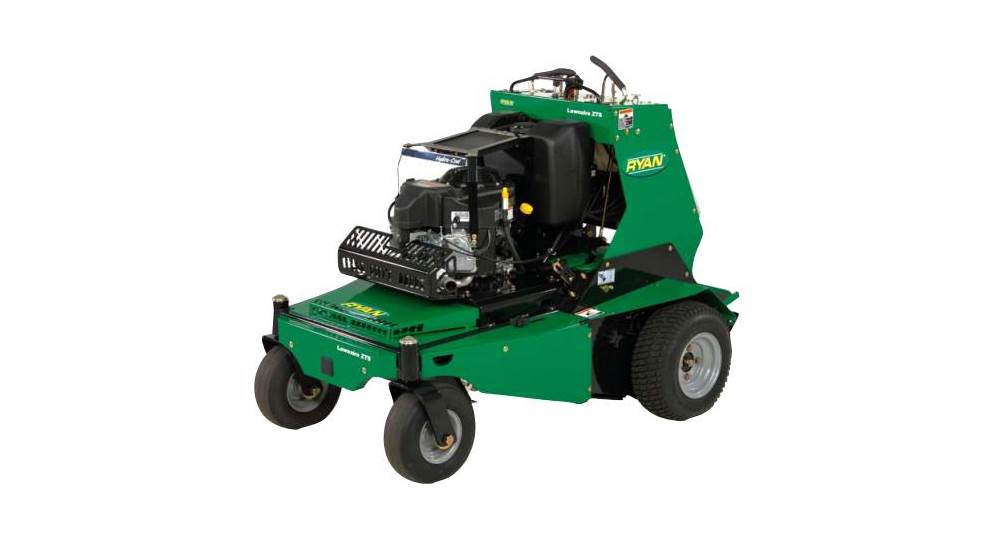

A New Approach to Aeration–the Lawnaire® ZTS Stand-On Aerator
Product Highlights
- Innovative automatic chain tensioning system reduces the chain maintenance required.
- Aeration Depth Gauge provides precise aeration depth control in varying soil conditions
- Intuitive control panel with a tine lift switch to raise and lower tines
- Flip up operator platform with a quick latch allows for the Lawnaire® ZTS to be a walk behind aerator and a reduced footprint on trailers.
- Integrated jack stands allow for easy maintenance of the Lawnaire® ZTS
- The Lawnaire® ZTS will change the way you aerate!
Product Specifications
Engine
Engine: Kawasaki FS541V
Fuel Capacity: 5 gal (18.9 L)
Safety System: Interlock,Engine will not start unless parking brake is engaged and OPC is released
Transmission
Hydrostatic: 2 Hydro Gear® ZT3200
Hydraulic Oil Capacity (qt. / L): 7 qt. (6.6L)
Ground Speed
Forward: 0 - 7.4 mph (0-11.9 kmh)
Reverse: 0 - 3.1 mph (0-5.6 kmh)
Wheel & Tine Drive
Drive Wheels: Driven through roller chains
Tine Drive: Outside aeration tines are driven through roller chains
Turning Radius - Tines Down: 5 ft (1.5 m)
Turning Radius - Tines Up: 0
Time to Raise/Lower Tines (sec): 1.4 up, 1.8 down
Tires and Wheels
Style - Drive: Pneumatic
Style - Front Caster: Pneumatic
Style - Drive: 18 x 6.50 - 8
Style - Front Caster: 13 x 5.00 - 6
Pressure - Drive (psi): 15 lbs. (7 kg)
Pressure - Front Caster (psi): 25 lbs. (11 kg)
Aeration
Aeration Width: 30 in. (762 mm)
Number of Tines: 48
Tine Down Pressure: 0-700 lbs. (0 - 318 kg)
Core Depth: 2 - 5 in. (50 - 250 mm)
Holes Per Square Foot: ~5.1 (55/m2)
Dimensions
Width: 47.25 in. (1200 mm)
Length: 60.5 in. (1537 mm) platform up, 69.5 in. (1765 mm) platform down
Height: 48 in. (1219 mm)
Curb Weight: 1,235 lbs. (560 kg)
Productivity: up to 97,800 ft2/hr (9,086 m2/hr)
Warranty: 2-year Limited Warranty
NOTES:
Specifications subject to change without notice.
