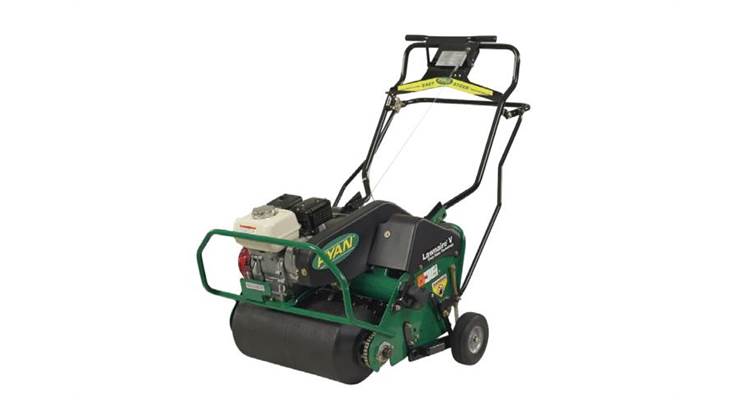

Lawnaire V w/ EST

Whether you’re a rental house, lawn care contractor or homeowner, the Lawnaire V with Easy Steer Technology has an application to suit your needs. Legendary Lawnaire Performance and Durability with Easy Steer Technology. The tine assembly allows the operator to steer the unit without taking the tines out of the ground. This is accomplished by designing each tine assembly to independently rotate yet be able to drive. This translates into higher productivity and less physical stress on the operator because it is easier to use.

Product Specifications

Power

• Engine model: 4-cycle Briggs & Stratton Vanguard, recoil start; on/off switch, dual air cleaner; low-tone muffler
• Displacement: 12.5 cu. In. (205 cc)
• Fuel Capacity: 0.84 gal. (3.3 L)
• Oil Capacity: 0.63 qt (0.6 L)
• Engine Model: 4-cycle Honda® GX120; recoil start; on/off switch; low-oil alert
• Displacement: 7.2 cu in. (118 cc)
• Fuel Capacity: 0.53 gal. (2 L)
• Oil Capacity: 0.59 qt (0.56 L)

Unit

• Clutch: Belt tightener
• Drive: Primary: 4L section V-belt
• Drive: Tine & Drum: Single #40 nickel-plated chain
• Tines: . 0.75 in. (19 mm) diameter coring type formed from 0.08 in. (2 mm) hollow, hardened alloy steel;
• Number of Tines: 42 tines per aerator
• Lubrication: Grease zerks on the wheels & idler pivot / oil chain
• Coring Depth: Up to 2.75 in. (70 mm)
• Core Diameter: 0.75 in. (19 mm)
• Aerating Width: 26.5 in. (673 mm)
• Aeration Pattern: 3.75 in. x 7 in. (95 mm x 178 mm)
• Holes per Sq Ft: Up to 9/ sq ft (.59 / m2)
• Productivity: Aerates up to 40,000 sq ft/hr (3,716 m2/hr) at 3.5 mph (4.83 kph)
• Tires: (2) 8x2.25 semi-pneumatic w/ball bearings

Dimensions

• Weight: Wet w/o Weights: 250 lb (113 kg)
• Weight: Wet w/Weights: 292 lb (132 kg)
• Weight: Wet w/Weights and Water in Drum: 357 lb (162 kg)
• Width: 35.5 in. (902 mm)
• Length: 53.5 in. (1,359 mm)
• Height: 48.5 in. (1,232 mm)

NOTES:
Specifications subject to change without notice.
