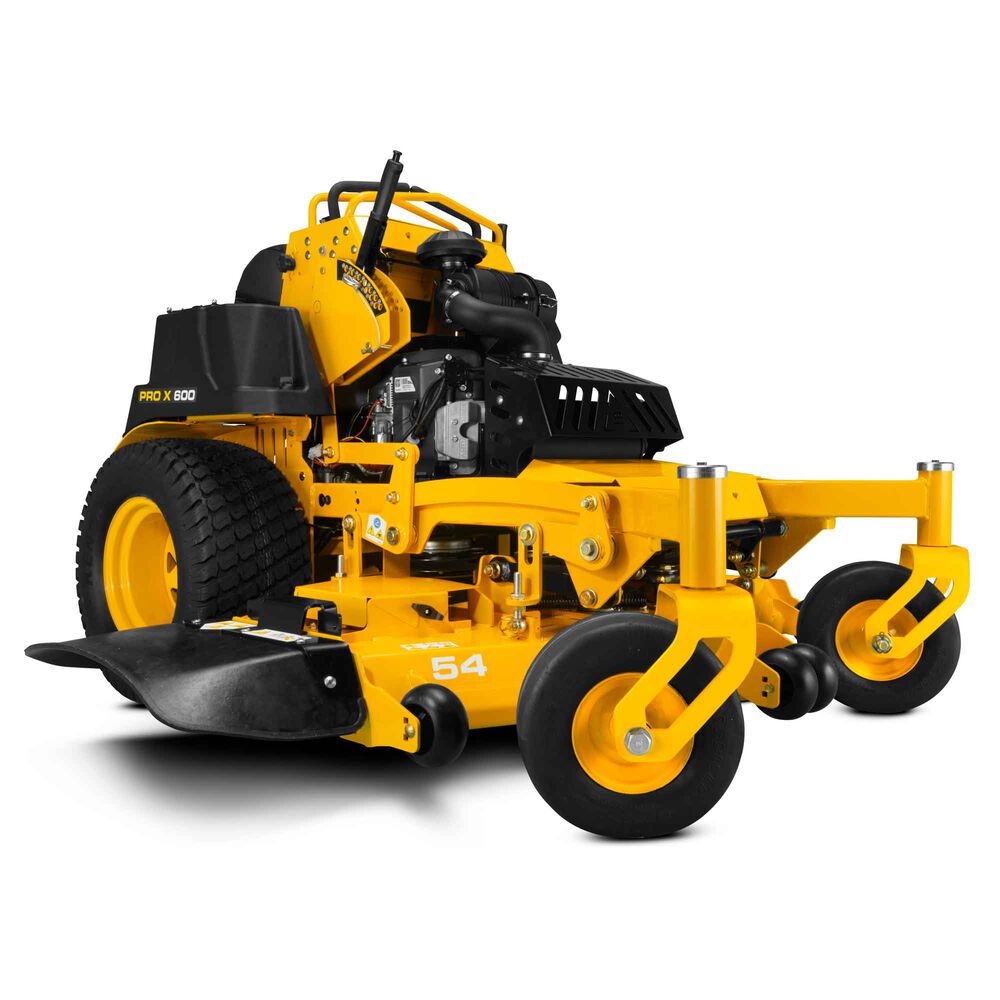

PRO X 654 EFI

Name: PRO X 654 EFI
Brand: Cub Cadet
SKU: CUB-53RL8CSA050
Price: 8999.00 USD
Availability: InStock

Special FinancingSave $2,907.00

Cub CadetSKU: CUB-53RL8CSA050

Price:

$8,999.00 $11,906.00

Stock:

Only 3 units left

Quantity:

Available for store pickup and local delivery only

Pickup available at Affton Lawn Equipment

Usually ready in 4 hours

Share this product

Category: Commercial Zero Turn

Primary Use: Commercial

Size:

Power Type: Gas

Product Highlights

A fully fabricated 54-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.
Read More
3-year limited commercial warranty (no hour limitations) and 5-year/1,750-hour limited deck assembly warranty.

Specifications

Engine

Engine Brand: Kawasaki®
Engine Model: FX Series EFI
Engine Model Number: 850V
Engine Displacement: 852cc
Engine Output: 29.5HP
Starter Type: Electronic
Fuel Tank Capacity: 7.5 gal. US (28.4 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.0 qt. US (1.89 L)
Lubrication: Fully pressurized
Charging System: 15 amp regulated
Fuel Gauge: No
Choke: Auto-Choke
Air Filter: High Density
Oil Filter: Yes
Fuel Delivery: Electronic Fuel Injection (EFI)

Drive System

Transmission: 12cc Hydro-Gear® pumps / 240cc Parker® wheel motors
Forward Speed: 10 mph / 16 km/h
Reverse Speed: 5 mph / 8 km/h

Cutting Deck

Deck Cutting Width: 54 in
Deck Material: 10-gauge steel
Deck Engagement (PTO): Electronic with quick reset
Deck Construction: 10 ga shell w/ 7 ga top & bottom reinforcement
Spindle Construction: HD 8" aluminum housing, 35mm double-row sealed ball bearings, 1-3/8" through-shaft and maintenance-free design
Blade(s): Three 19" long high-lift Marbain blades, 1-1/2" of blade overlap
Deck Lift: Hand lever adjusting spring lift, pin selector for height
Cutting Height Range: 1” to 5” in 1/4” increments
Anti-Scalping: 2 front deck gauge wheels

Warranty

Warranty: 3-year / no-hour-limit warranty
Deck Shell Warranty: 5-year / 1,750 hour limited manufacturer’s warranty

Chassis

Frame: 2" x 3" full-length tube frame
Front Axle: 2" x 3" tube construction
Front Caster Mount: 3/8" thick steel
Suspension: Hand lever adjust, 3-position spring suspension foot platform

Controls

Cruise Control: NA
Brakes: Hand lever control / external band
Steering Control: Levers

Wheels

Rear Tires: 24"x12"-12"
Front Tires: 13x5-6" Reliance Run Flat Carlisle

Dimensions

Dimensions: L/W/H69" / 68" / 56"
Weight: (approx.)1080 lbs

Additional Specifications

Hour Meter: Crew Boss
Model Number: 53RL8CSA050

Disclaimer

Specifications Disclaimer: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from.
