Product Highlights

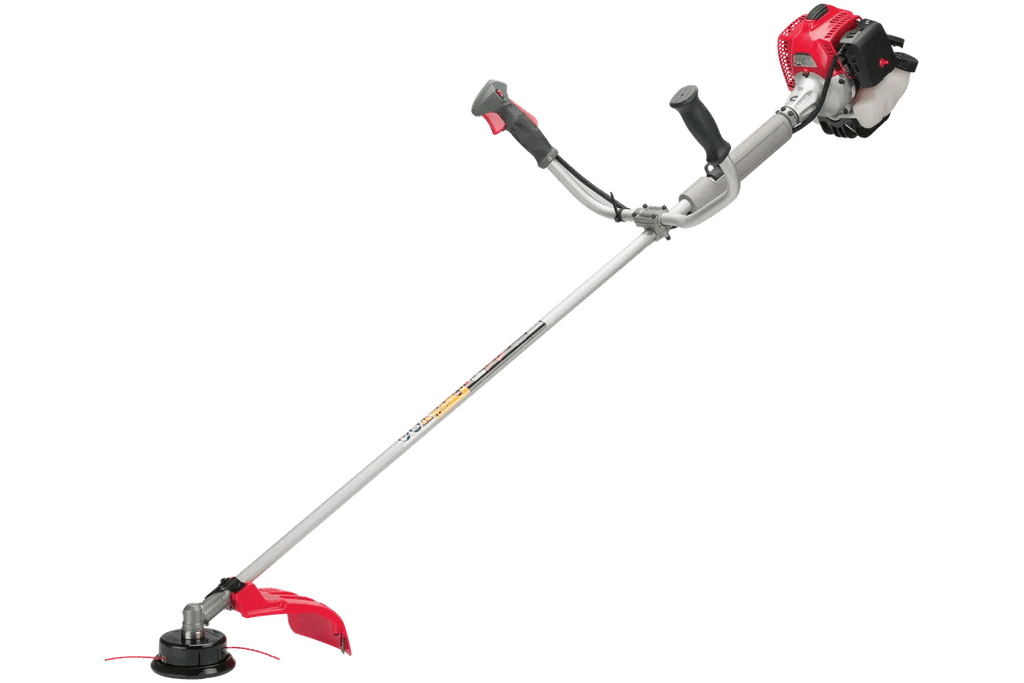

BCZ3050SW
RedMax brushcutters are designed around the needs of professionals in the landscaping community. The BCZ3050SW features a Strato-Charged 2-stroke engine that produces ultra-low emissions with high power output. Its 29.5 cc, 1.4 horsepower engine is combined with a die-cast aluminum housing for maximum heat dissipation for a longer life. A solid steel drive shaft connects to a gearbox with zerk fittings, so it is easy to lubricate and maintain. And the BCZ3050SW has a vibration-reduction system built into the fan housing to reduce operator fatigue and allow you to work longer. Bike handles with throttle control improve ergonomics for the operator.
| Engine |
BCZ3050SW - CARB Compliant
Article Number: 966 33 68‑01
|
| Cylinder displacement |
1.8 cu.inch |
| Clutch engagement speed (±120) |
4,000 rpm |
| Electrode gap |
0.04 in |
| Fuel consumption |
508 g/kWh |
| Fuel tank volume |
24.3 fl oz |
| Idling speed |
3,000 rpm |
| Maximum rpm output shaft |
8,208 rpm |
| Power output |
1.4 hp |
| Spark Plug |
NGK CMR7H-10 |
| Torque, max. |
1.37 Nm |
| Torque, max. at rpm |
5,500 rpm |
| Product data |
|
| Drive gear angle |
60 ° |
| Gear ratio |
1.462 |
| Emission |
|
| Exhaust emissions (CO average) CARB |
277.3 g/kWh |
| Dimensions |
|
| Weight (excl. cutting equipment) |
12.76 lbs |
