Product Highlights

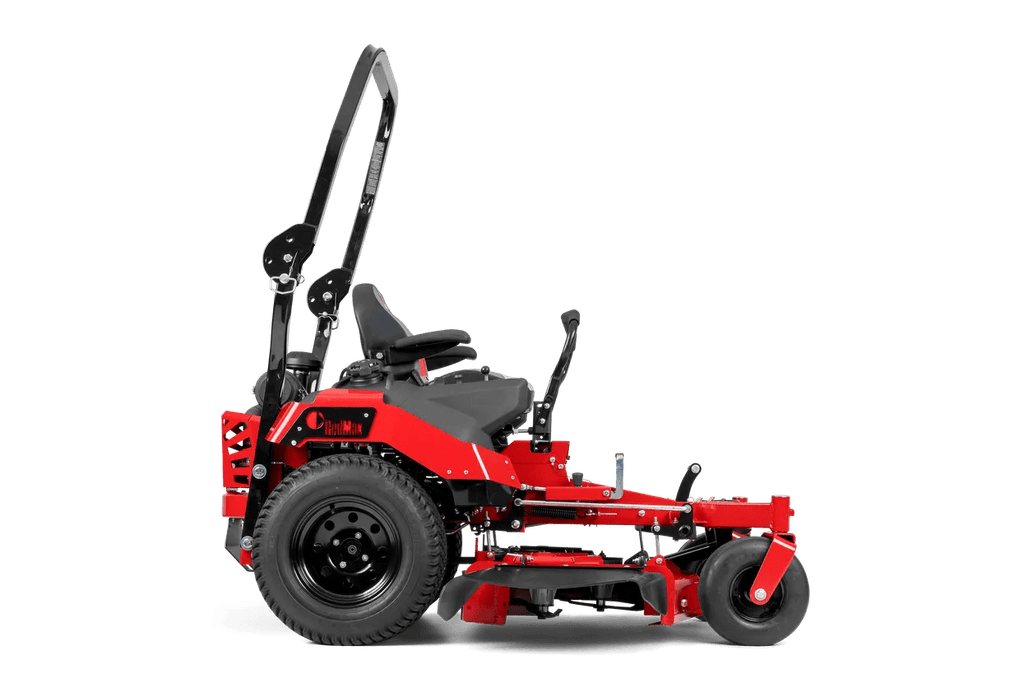

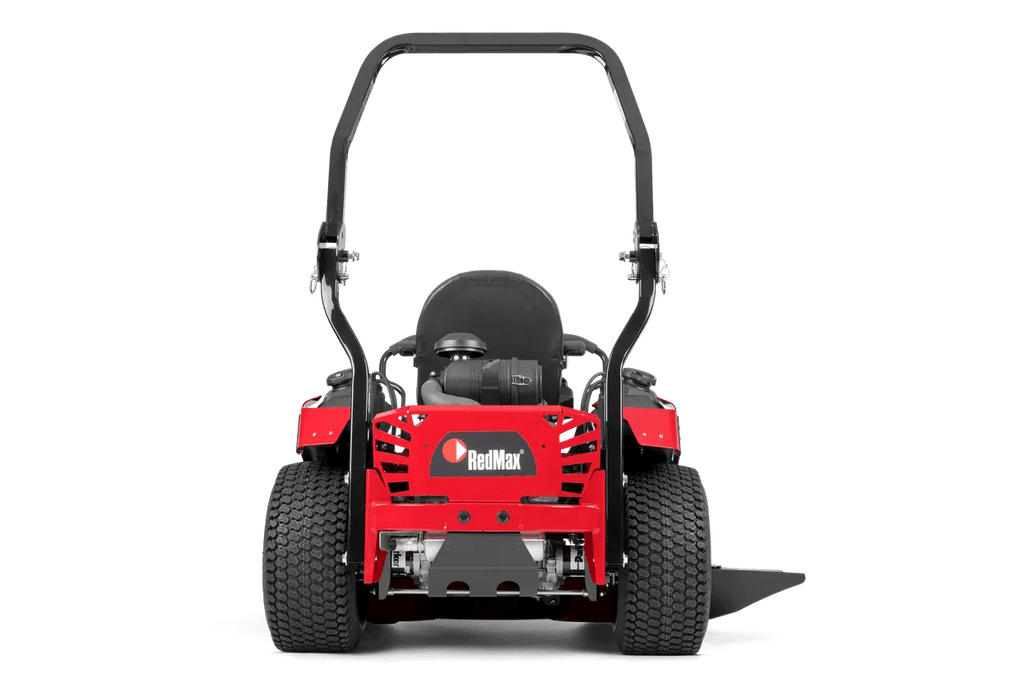

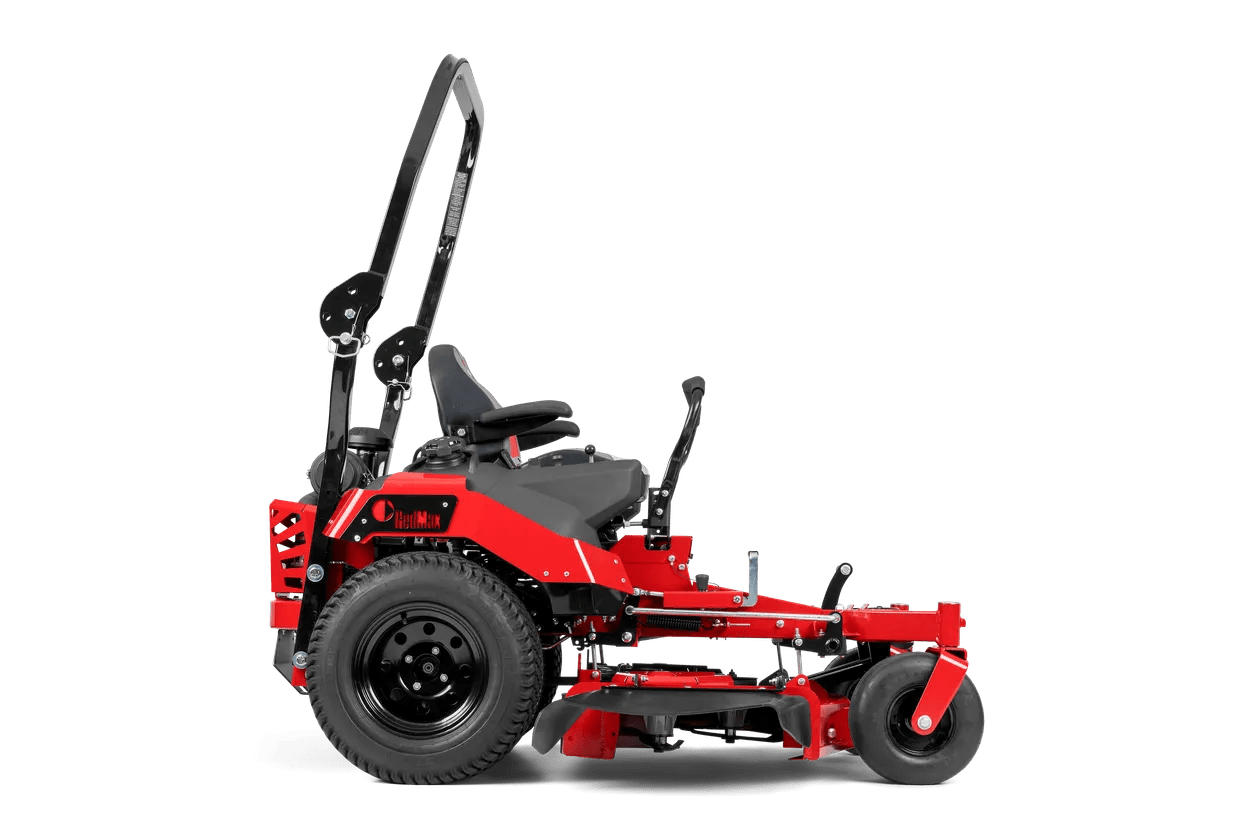

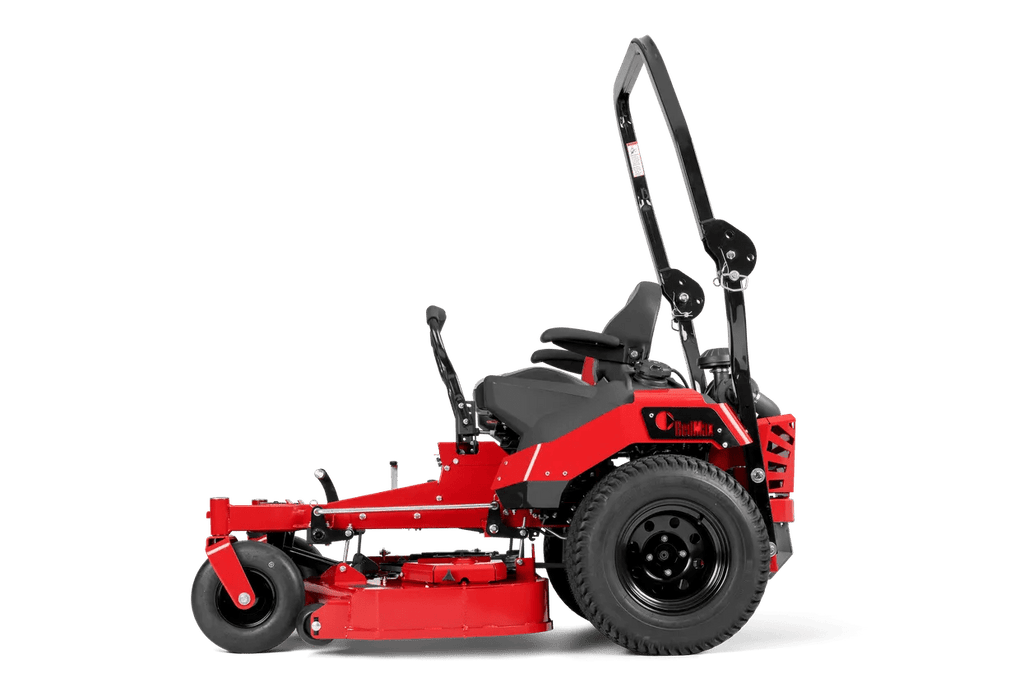

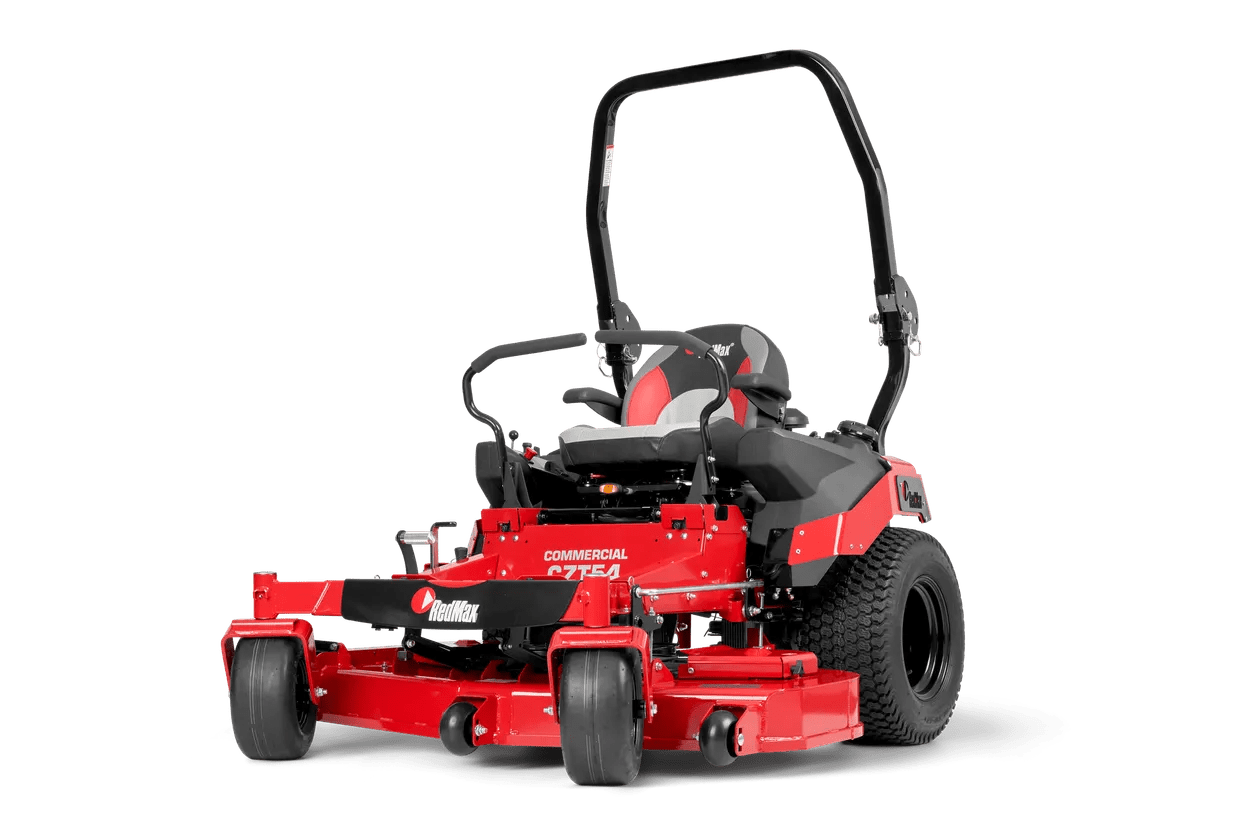

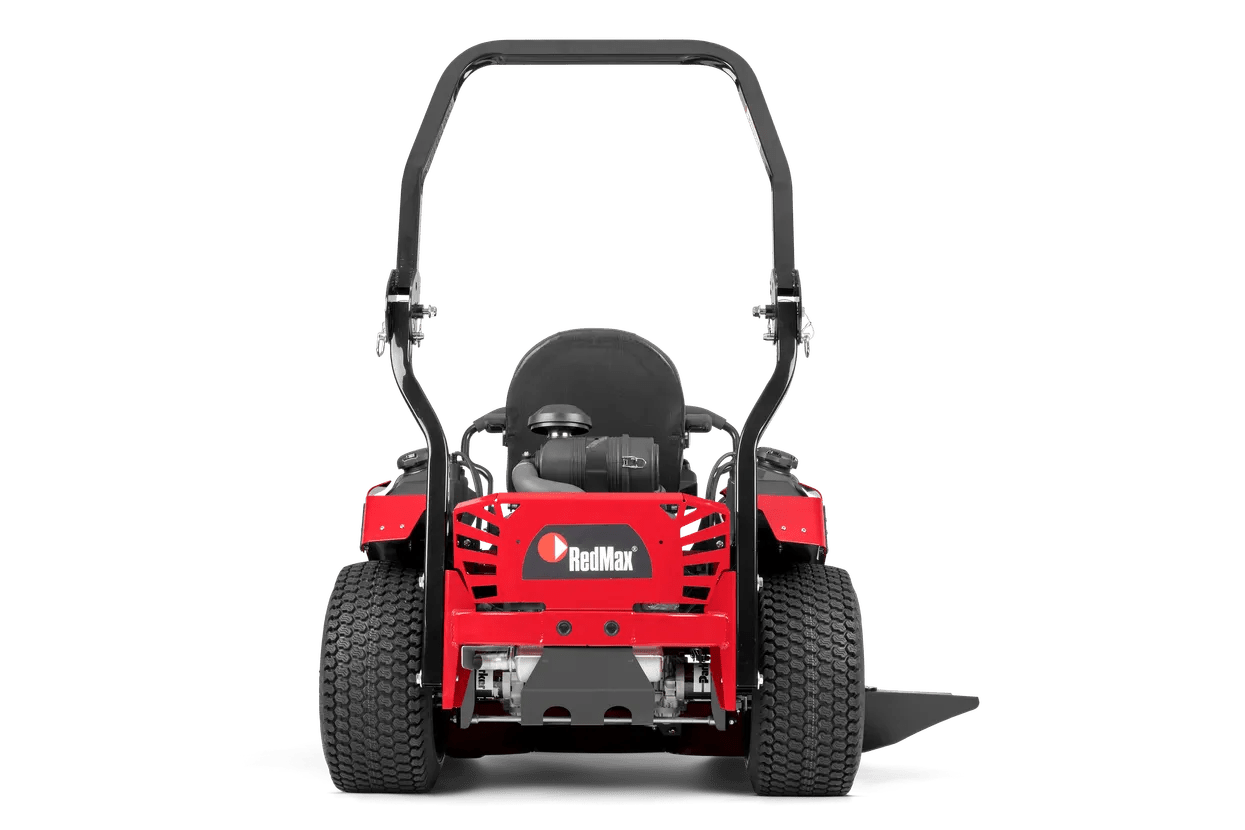

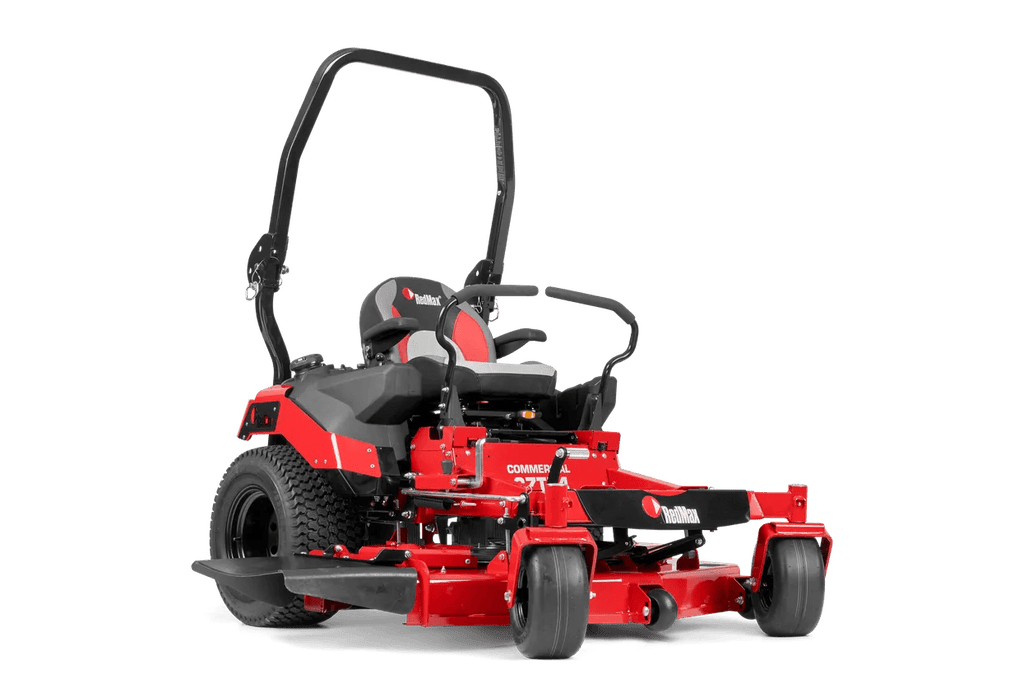

CZT54+
RedMax brings commercial capability and affordability together in the CZT platform. Designed with the landscaper in mind, the CZT provides commercial application at a fraction of the cost. Commercial duty engines and drivetrains coupled with heavy duty frames provide reliability day after day, season after season. Excellent weight balance and an ergonomic layout provide ease of operation under the toughest mowing conditions, making short work out of big jobs. Add the RedMax accessories you need to tailor the CZT to your exact mowing needs.
Rubber Discharge Shield
The rubber shield is flexible to avoid damage due to accidental impacts
Convenient Cut Height Adjustment
The foot activated deck lift system features an automatic lock in transport, 13 positions and quick release to preset cut height
Fabricated Cutting Deck
The 6" deep cutting deck features performance tuned baffles and rugged 10 Gauge construction for superior cut quality and durability.
Ergonomic control panel
The ergonomic control panel places everything conveniently at your fingertips.

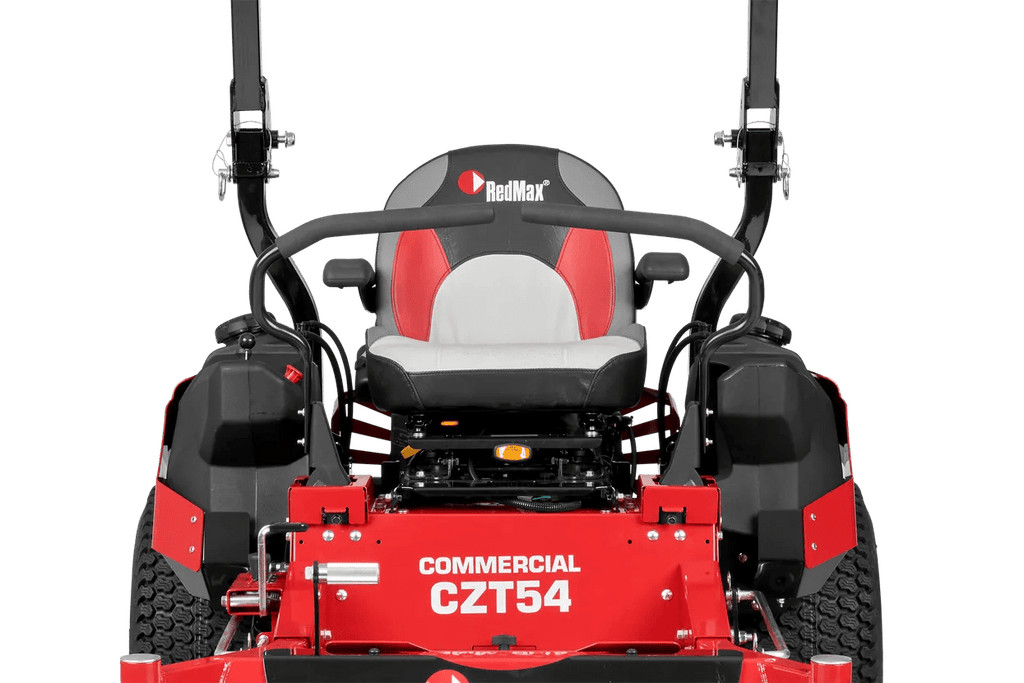

Deluxe seat with Suspension
Thick cushions, EVC (elastomeric vibration control) and a weight adjustable suspension platform provide comfort for the operator even on rough terrain. The two tone vinyl covers are replaceable in the event of damage.
Heavy-Duty Kawasaki Engine
Delivers smooth, quiet and reliable power with heavy-duty components for a long life
Easy Cutting Deck Access
Removable foot pan for easy access to deck belts, pulleys, spindle service and clean-up.
Large Fuel Capacity
Dual fuel tanks with 10 gallon total capacity allows for all day running. Oversized fuel caps reduce spillage.
Easy-access service points
Oil and filter maintenance, hydraulic drive system components/adjustment, electrical system and battery are all within easy reach so you can quickly get back to being productive.
Commercial spindle assembly.
Heavy-duty blade spindles feature greasable tapered roller bearing for strength and durability. Fitted in aluminum housings for effective heat dissipation.
Over-sized discharge opening
The purposefully designed side discharge opening ensures excellent airflow throughout the cutting deck. Better clipping dispersal helps eliminate double cutting and clumping.
Oversized chassis
2'' x 3'' tube chassis combined with large rear and front tires provide superior strength and improved ride quality. (CZT60+ shown)
Roll Over Protection System (ROPS)
The roll over protection system helps protect the user and can be lowered in areas with low-hanging branches.
Rugged Front Casters
Heavy Front casters feature tapered roller bearings, 1" shafts, 3/8" thick yokes and protected grease zerks for maximum durability
Specifications
Engine |
CZT54+ ZERO TURN
Article Number: 970 49 80‑01
|
Cylinder displacement |
44.3 cu.inch |
Cylinders |
2 |
Engine lubrication type |
Full pressure with oil filter |
Engine name |
FX Series V-Twin |
Fuel tank location |
Side (Dual) |
Fuel tank volume (with reserve) |
10 gal (US) |
Motor/engine manufacturer |
Kawasaki |
Power/fuel type |
Gasoline |
Equipment |
|
Cup holder |
Yes |
Seat back height |
High |
Seat type |
Professional, suspension |
Cutting deck |
|
Anti-scalp wheels |
4 |
Blade engagement |
Electric clutch |
Blades |
3 pcs |
Cutting deck material |
Steel |
Cutting deck type |
10-gauge fabricated |
Cutting methods |
Collect/Mulch/Side discharge |
Cutting width |
54 in |
Deck thickness |
10 gauge |
Capacity |
|
Speed forward max |
11 mph |
Drive system |
|
Transmission manufacturer |
Parker |
Transmission model |
HTE12 |
Dimensions |
|
Base machine, height |
49.75 in |
Base machine, length |
76.5 in |
Base machine, width |
49.5 in |
Weight |
982 lbs |
