Specifications
Rubber Discharge Shield
The rubber shield is flexible to avoid damage due to accidental impacts
Adjustable steering levers
Steering levers are adjustable for different size operators - ergonomically angled inward for more comfort and can be adjusted to suit your particular style.

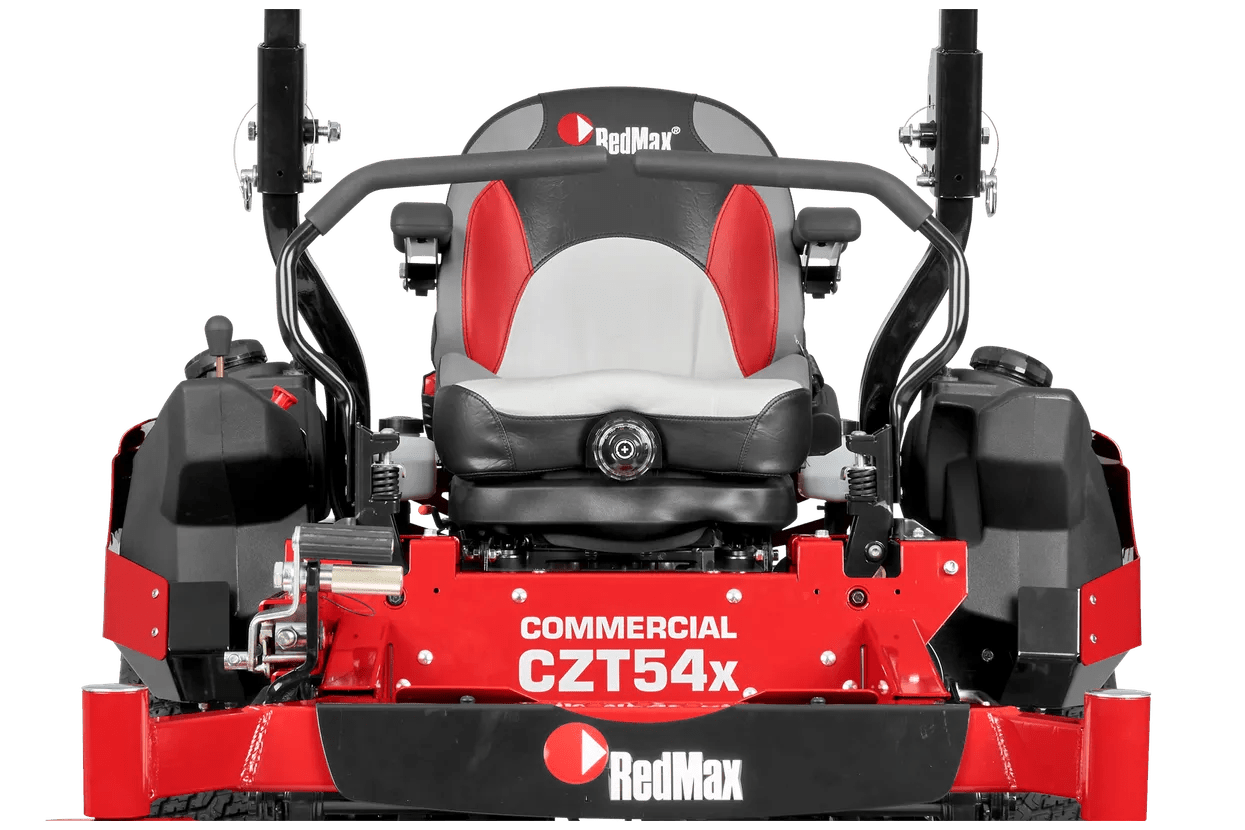

Premium Suspension seat
Deep cushions and EVC (elastomeric vibration control) provide unsurpassed comfort for the operator. Additional full suspension system gives a smoother ride on rough terrain during long working hours.
Adjustable Heavy Duty Clutch
The commercial duty electric clutch is adjustable for wear to prolong the useful life.

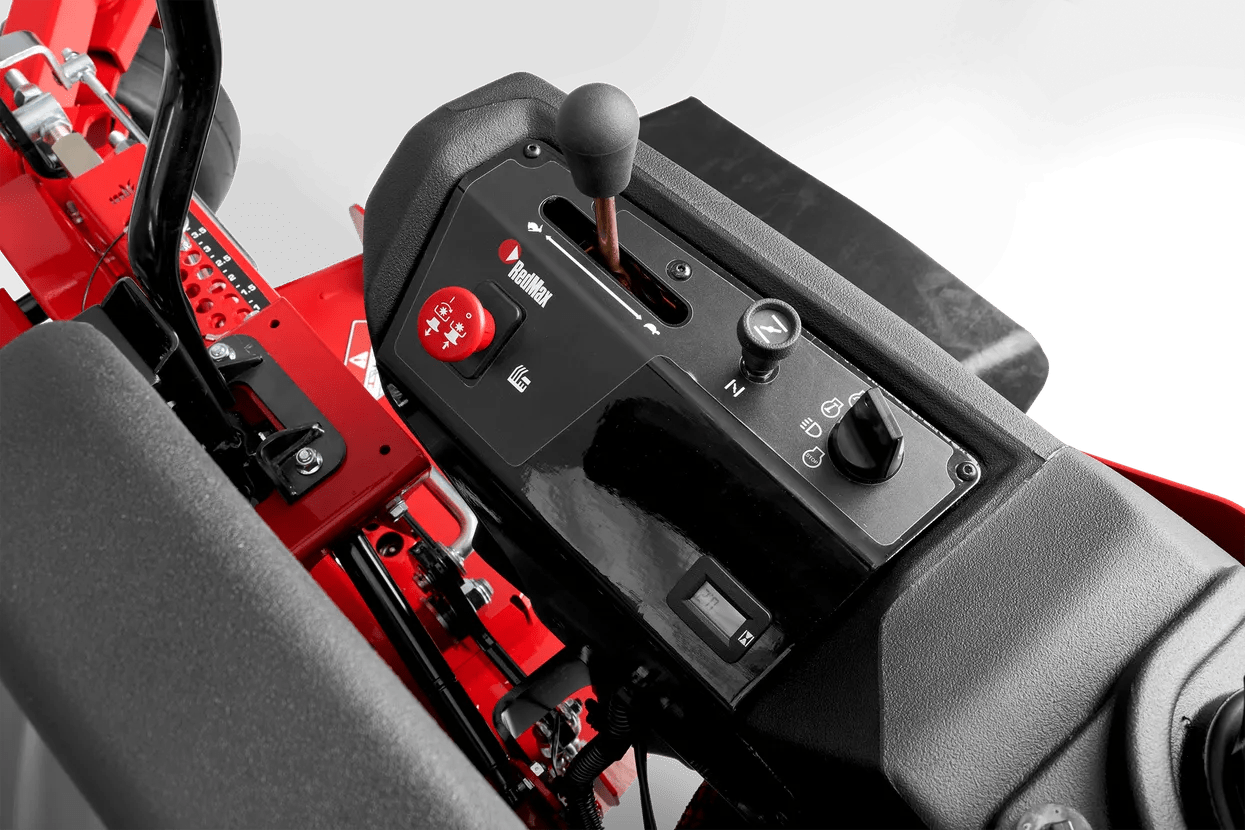

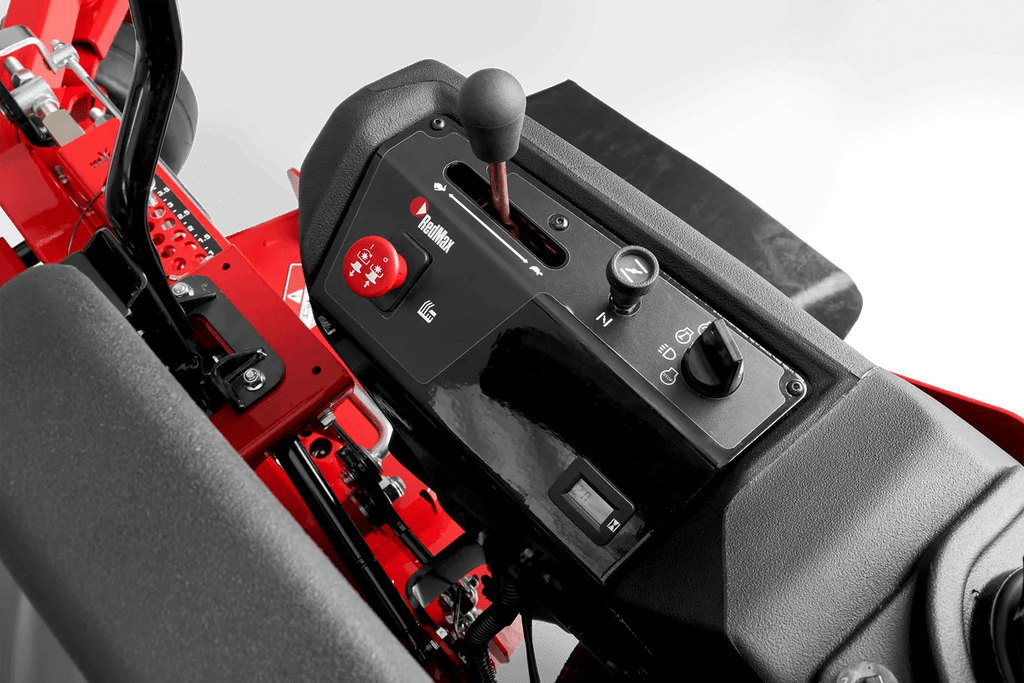

Ergonomic control panel
The ergonomic control panel places everything conveniently at your fingertips.
Cast iron spindles
10" diameter cast iron spindles, supported by heavy duty tapered roller bearings give maximum durability and impact resistance.
Cutting deck
The combination of 6" deck depth, high-performance blades and optimized deck baffles allows for exceptional cut quality and clipping dispersal. This gives you faster cutting speeds for increased productivity while minimizing missed grass or clumps.
Large Fuel Capacity
Dual fuel tanks with 10 gallon total capacity allows for all day running. Oversized fuel caps reduce spillage.
Commercial Duty Drive System
The Hydro-Gear ZT-5400 series transmission offers smooth operation and long life durability.

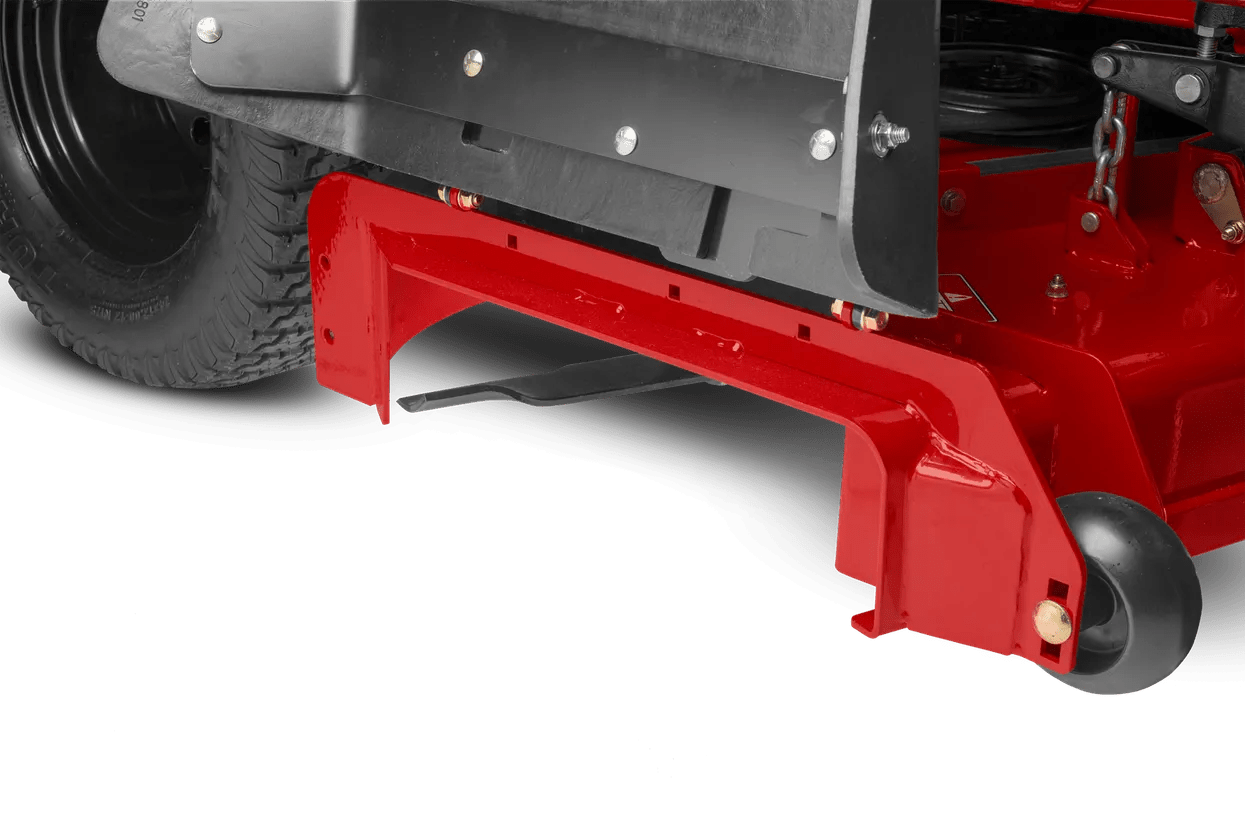

Over-sized discharge opening
The purposefully designed side discharge opening ensures excellent airflow throughout the cutting deck. Better clipping dispersal helps eliminate double cutting and clumping.
Easy Cutting Deck Access
Removable foot pan for easy access to deck belts, pulleys, spindle service and clean-up. (CZT60X shown).

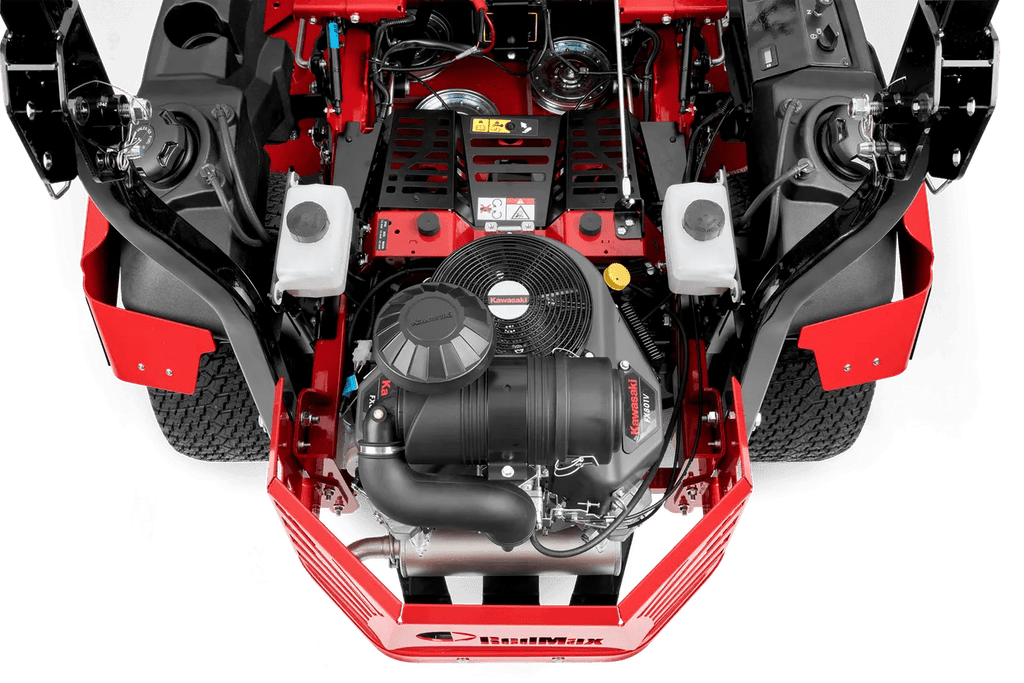

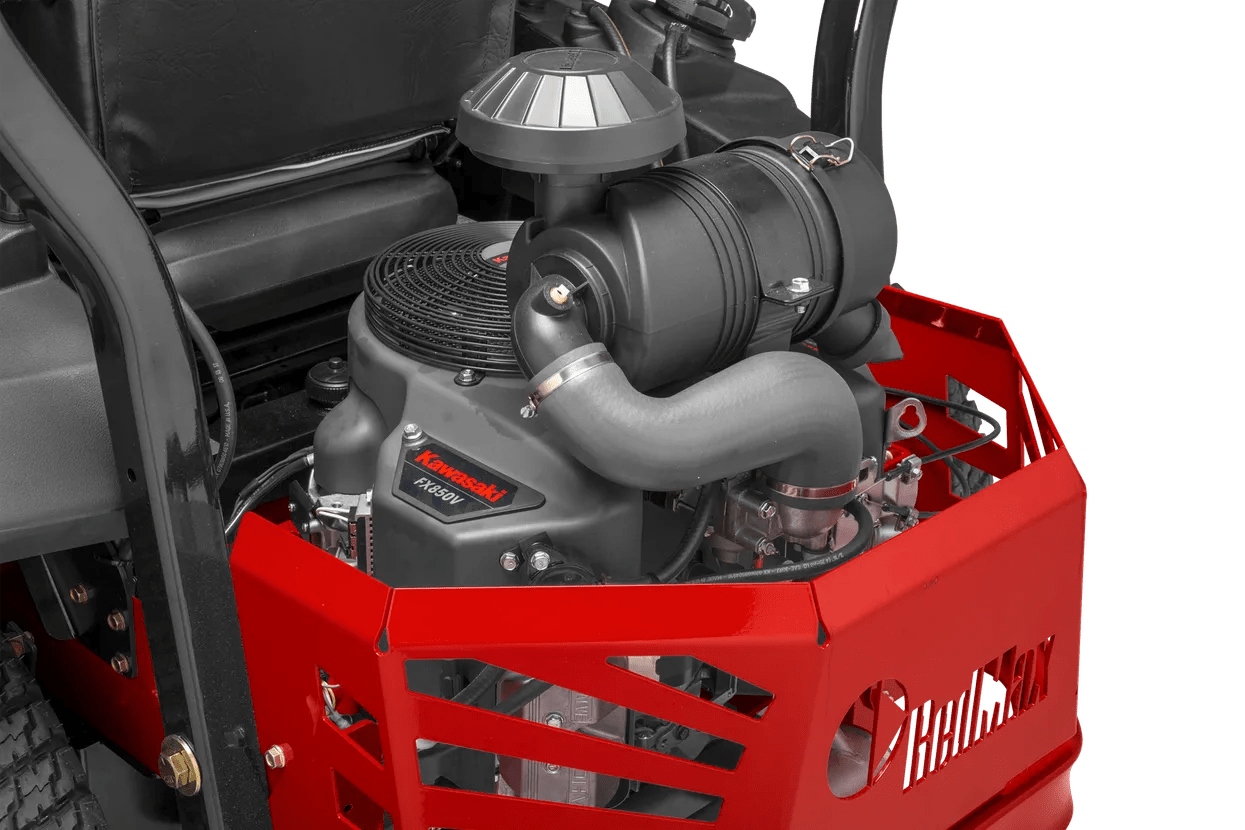

Convenient Service Access
The open chassis design offers excellent service access. Open access on either side of the engine simplifies maintenance.
Convenient Deck Lift System
The robust, pedal-operated deck lift system is spring assited for quick, hands-free operation. Deck height is adjustable to 17 Positions.
Heavy Duty Frame
11 Gauge, 2'' x 3'' tube chassis combined with large rear and front tires provide superior strength and improved ride quality.
Specifications
| Engine |
2021 model, ZT-5400 Drive
Article Number: 970 49 76‑01
|
| Cylinder displacement |
52 cu.inch |
| Cylinders |
2 |
| Engine cooling |
Air |
| Engine lubrication type |
Full pressure with oil filter |
| Engine name |
FX Series |
| Fuel tank location |
Side (Dual) |
| Fuel tank volume (with reserve) |
11 gal (US) |
| Motor/engine manufacturer |
Kawasaki |
| Power/fuel type |
Gasoline |
| Equipment |
|
| Cup holder |
Yes |
| Seat back height |
High |
| Seat spring |
Yes |
| Seat type |
Premium, suspension |
| Cutting deck |
|
| Anti-scalp wheels |
4 |
| Blade engagement |
Electric clutch |
| Blades |
3 pcs |
| Cutting deck material |
Steel |
| Cutting deck type |
7-gauge fabricated |
| Cutting methods |
Collect/Mulch/Side discharge |
| Cutting width |
54 in |
| Deck thickness |
7 gauge |
| Capacity |
|
| Speed forward max |
11 mph |
| Speed forward min |
0 mph |
| Drive system |
|
| Transmission manufacturer |
Hydro-Gear |
| Transmission model |
ZT 5400 |
| Dimensions |
|
| Base machine, height |
46 in |
| Base machine, length |
81 in |
| Base machine, width |
53.5 in |
| Weight |
1,283 lbs |
