Product Highlights
CZT60x
The Redmax CZTx series was designed with commercial landscapers in mind. With a focus on commercial engines, heavy duty Integrated drive systems, cast iron components, heavy gauge steel decks and robust frames, RedMax is designed to stand the test of time. Full suspension seats with EVC technology will keep the operator comfortable all day, while automatic park brake and hands free deck lift system improve overall efficiency. Available with a full line of accessories for your specific mowing requirements. (CZT54X shown)
Cutting deck
The combination of 6" deck depth, high-performance blades and optimized deck baffles allows for exceptional cut quality and clipping dispersal. This gives you faster cutting speeds for increased productivity while minimizing missed grass or clumps.
Rubber Discharge Shield
The rubber shield is flexible to avoid damage due to accidental impacts
Commercial Duty Drive System
The Hydro-Gear ZT-5400 series transmission offers smooth operation and long life durability.
Adjustable steering levers
Steering levers are adjustable for different size operators - ergonomically angled inward for more comfort and can be adjusted to suit your particular style.
Kawasaki FX Series engine
The Kawasaki FX series engine is an overhead valve engine with full pressure lubrication and spin-on oil filter. It combines exceptional power and torque with fuel efficiency and reduced emissions. Standard canister air filter for longer service intervals
Premium Suspension seat
Deep cushions and EVC (elastomeric vibration control) provide unsurpassed comfort for the operator. Additional full suspension system gives a smoother ride on rough terrain during long working hours.
Roll Over Protection System (ROPS)
The roll over protection system helps protect the user and can be lowered in areas with low-hanging branches.
Adjustable Heavy Duty Clutch
The commercial duty electric clutch is adjustable for wear to prolong the useful life.
Ergonomic control panel
The ergonomic control panel places everything conveniently at your fingertips.

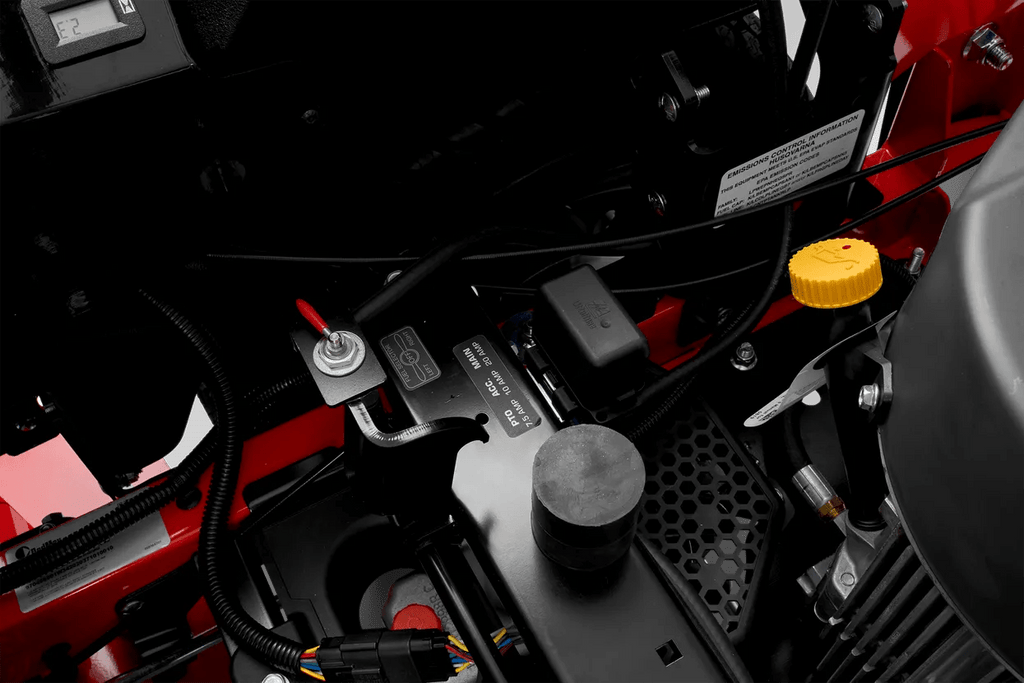

Convenient Service Access
The open chassis design offers excellent service access. Open access on either side of the engine simplifies maintenance.
Convenient Deck Lift System
The robust, pedal-operated deck lift system is spring assited for quick, hands-free operation. Deck height is adjustable to 17 Positions.
Cast iron spindles
10" diameter cast iron spindles, supported by heavy duty tapered roller bearings give maximum durability and impact resistance.
Heavy Duty Frame
11 Gauge, 2'' x 3'' tube chassis combined with large rear and front tires provide superior strength and improved ride quality.
Engine |
CZT60X ZERO TURN 31 HP Version
Article Number: 970 49 75‑02
|
Cylinder displacement |
61 cu.inch |
Cylinders |
2 |
Engine cooling |
Air |
Engine lubrication type |
Full pressure with oil filter |
Engine name |
FX Series V-Twin |
Fuel tank location |
Side (Dual) |
Fuel tank volume (with reserve) |
10 gal (US) |
Motor/engine manufacturer |
Kawasaki |
Power/fuel type |
Petrol |
Equipment |
|
Cup holder |
Yes |
Seat back height |
High |
Seat type |
Premium, suspension |
Cutting deck |
|
Anti-scalp wheels |
6 |
Blade engagement |
Electric clutch |
Blades |
3 pcs |
Cutting deck material |
Steel |
Cutting deck type |
7-gauge fabricated |
Cutting methods |
Collect/Mulch/Side discharge |
Cutting width |
60 in |
Deck thickness |
7 gauge |
Capacity |
|
Speed forward max |
12 mph |
Drive system |
|
Transmission manufacturer |
Hydro-Gear |
Transmission model |
ZT 5400 |
Dimensions |
|
Base machine, height |
46 in |
Base machine, length |
81 in |
Base machine, width |
53.5 in |
Weight |
1,342 lbs |
