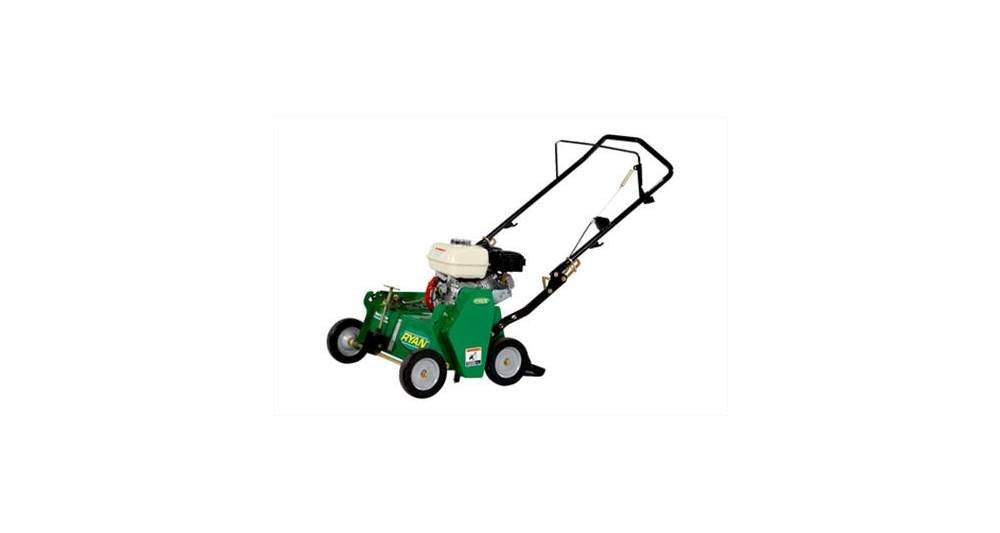

Built for years of reliable operation, the Ren-O-Thin® Power Rake is the industry leader in efficient dethatching. The Ren-O-Thin Power Rake offers performance that boosts your bottom line. An easy-to-operate height adjustment lets you fine-tune depth from 1 inch above the ground to 7/8 inch below. Both models come standard with fixed blades. An optional flail blade kit is available. The ergonomic, multi-position handle is designed for different user heights, and folds for storage and transport. Tines can be lifted off the ground and locked when in transport mode. The Ren-O-Thin® comes with either Honda® or Briggs & Stratton® Vanguard™ performance engines that add to the quality, durability and trust RYAN® delivers. An easy-on, easy-off seed box accessory is available with handle mounted controls to regulate seed flow.
Product Specifications
Power
Engine Model: 4-Cycle Vanguard™; recoil start; dual-air cleaner; low-tone muffler
Displacement: 12.5 cu in. (205 cc)
Fuel Capacity: 1.08 gal. (4.1 L)
Oil Capacity: 0.63 qt (0.6 L)
Engine Model: 4-Cycle Honda GX160; recoil start; on/off switch; low-oil alert
Displacement: 9 9 cu in (163 cc)
Fuel Capacity: 0 82 gal (3 1 L)
Oil Capacity: 0 61 qt (0 58 L)
Unit
Clutch: Spring-loaded belt tightener
Drive: A-section V-belt from engine to reel
Tires: (4) 8 x 1 75 semi-pneumatic, smooth tread
Cutting Depth: Reel adjustable from 1 in (25 mm) above ground to 0 875 in (22 mm) into ground; microscrew adjustment
Operating Width: 18 in (457 mm)
Reels/Blades
Fixed Type (Standard): 0.125 in. (1 mm) at 1.0 in. (25 mm) spacing
Flail Type (Optional): 0.125 in. (3 mm) at 1.0 in. (25 mm) spacing
Spring Type (Optional): 0.109 in. (2.76 mm) at 0.75 in. (19 mm) spacing
Blades: Hardened, high-carbon steel
Dimensions
Weight: Wet: 131 lb (60 kg)
Width: 27 in (686 mm)
Length: 55.5 in (1,410 mm)
Height: 39.0 in (991 mm)
Optional Seed Box
Capacity: 0.76 cu ft (21 5 L), or 0.61 bu
Weight: 30 lb (14 kg)
NOTES:
Specifications subject to change without notice.
