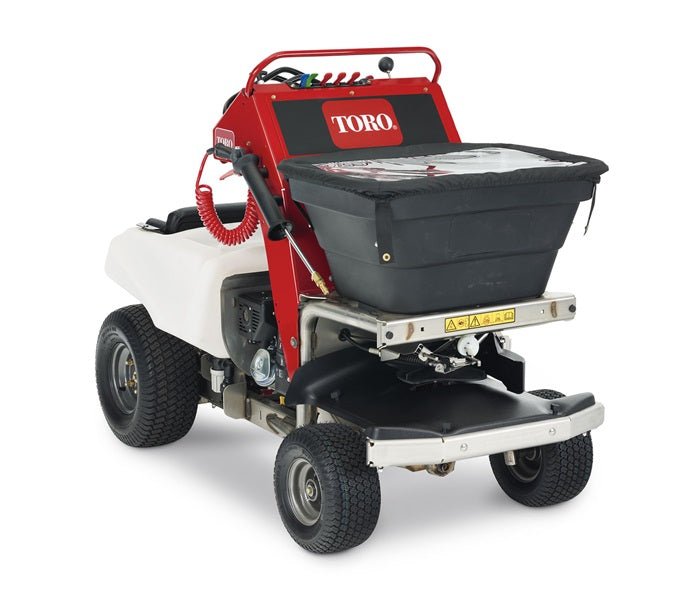

Stand-On SprayMaster Lean-to-Steer (34230)

Name: Stand-On SprayMaster Lean-to-Steer (34230)
Brand: Toro
SKU: TOR-34230
Price: 12199.00 USD
Availability: OutOfStock

ToroSKU: TOR-34230

Price:

$12,199.00

Stock:

Call to Order

Quantity:

Available for store pickup and local delivery only

Pickup currently unavailable at Affton Lawn Equipment

Share this product

Category:

Primary Use: Commercial

Size:

Power Type: Gas

Treating turf can be a big job. Toro’s stand-on spreader sprayer makes that job a whole lot easier. It’s the industry’s most innovative product of its kind, featuring Lean To Steer technology so you can control the machine with one hand and have one hand free to make adjustments to the spreader or sprayer using the intuitive control panel. With fast forward speeds of up to 5.5 mph, a large 175-lb. hopper and a 20-gallon spray tank, you can count on spending less time refilling and more time covering ground.

Product Highlights

Make Adjustments on the Fly - Control forward/reverse and left/right steering with one hand.
Easy-to-Use Controls - The easy-to-operate control panel allows the operator to conveniently make adjustments to spread and spray settings.
Reduce Fatigue - Stand-on operator platform, isolation mounts and padded knee bolster for a comfortable ride
Increase Versatility - One multiuse machine that allows you to feed and treat all turf types and property sizes.

Product Features

Lean to Steer Technology

Control forward/reverse and left/right steering with one hand, allowing adjustments to be made on the fly.

Large Capacity

From the 20-gallon spray tank and 175 lb. hopper capacity to the 1.85-gallon fuel tank, this unit is designed to maximize ground coverage and reduce refill stops.

Easy-To-Use Controls

The easy-to-operate control panel allows the operator to conveniently make adjustments to spread and spray settings.The updated digital controls allow for more precise application.

Compact Design

The compact design allows for exceptional maneuverability in tight spaces, including fitting through 36” gates, so spraying and spreading is possible in any area.

Operator Comfort

The large stainless steel operator platform, isolation mounts and the ergonomic padded knee bolster allow for a more comfortable ride and reduced operator fatigue.

Hand-held Spray Wand

The hand-held spray wand comes standard for spot spraying to ensure you’re covering the whole job, no matter how difficult to reach.

Spray Tank Agitation System

Two agitation nozzles in the spray tank can be turned on and off on demand from the operator panel to keep material in the tank circulating for even distribution and reduced clogging.

Product Specifications

Engine
Kohler 9.5 hp CH395 277cc
Fuel Capacity
1.85 Gal (7 L)
Starter
Electric / Pull
Spray Capacity
20 Gal (75.7 L)
Spray Width
4' (1.21 m) or 10' (3.0 m)
Spray Wand
Standard, hand-held spray wand for spot spraying
Spreader Hopper Capacity
175 lbs. (79.4 kg)
Spreading Width
Variable 4' – 22' (1.21 m – 6.7 m)
Length
67.5" (171.5 cm)
Width
35.5" (90.2 cm)
Height
51.5" (130.8 cm)
Weight
500 lbs. (226.8 kg) dry
