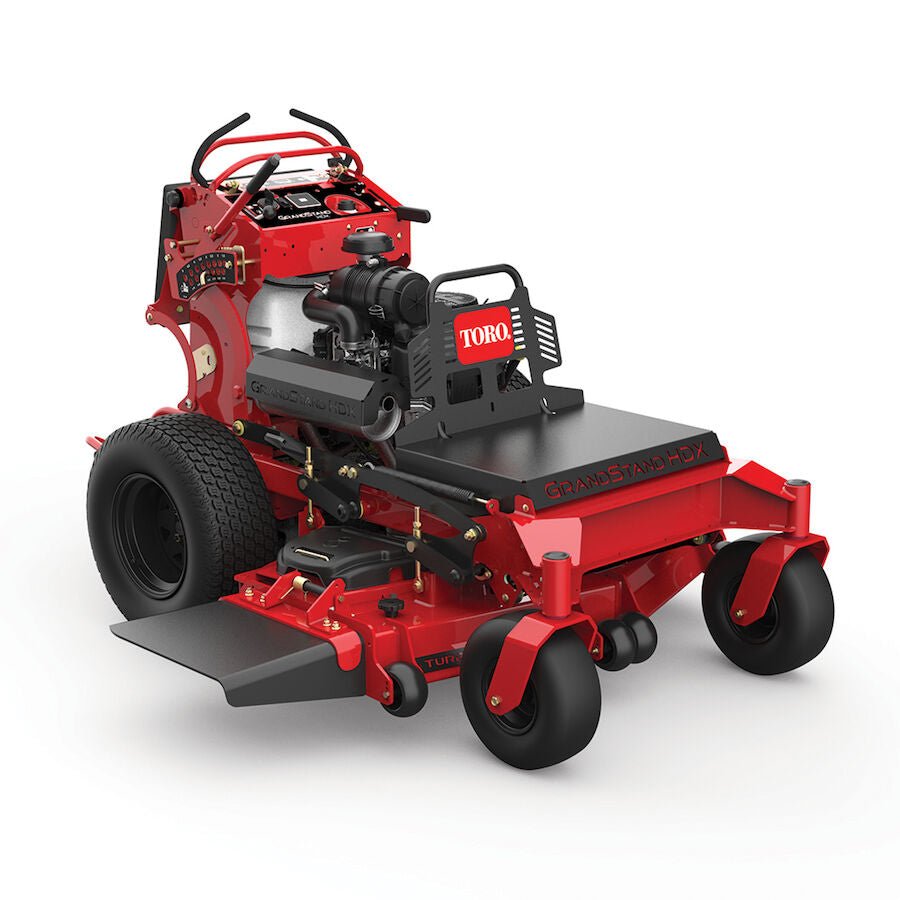

The Toro GrandStand® combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind creating a fast, maneuverable and more productive alternative. The HDX model provides increased efficiency with higher horsepower.
Product Highlights
- The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
- 24" tires with big block horsepower allow you to travel at 12 mph.
- More efficient operation with a flip up operator platform, utility hood and easy to get on and off.
- The 7 gauge TURBO FORCE® deck with the i-beam front end is built to last and backed by our impressive warranty.
- Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
- 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
- Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
- A wide stance and optimal balance enhance hillside stability and control.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Product Specifications
| Adjustable Discharge Baffle |
Standard, Tools-Free |
| Air Filter |
Heavy-Duty Canister Air Cleaner |
| Anti Scalp Wheels |
Standard |
| Blade Design |
0.204 in. / 0.518 cm |
| CARB Compliant |
Not CARB Compliant |
| Caster Tires |
13" x 6.5" (33 cm x 16.5 cm) Flat-Free Semi-Pneumatic |
| Clutch |
Electromagnetic |
| Comfort Platform |
Foldable Operator Platform with Suspension |
| Cutting Width |
52 in / 132 cm |
| Deck Design |
7-gauge 52" (132.1 cm) TURBO FORCE® 2 w/bull-nose bumper |
| Discharge Chute |
Rubber |
| Drive System |
Tuff Torq TZT13s 13cc IHTs |
| Drive Tires |
24" X 10.5" – 12" (61 cm x 26.7 cm – 30.5 cm) |
| Engine |
31 hp Kawasaki FX921 999cc |
| Engine Brand |
Kawasaki |
| Engine Displacement (cc) |
999 cc |
| Engine Horsepower |
31.0 hp |
| Forward Ground/Transport Speed |
Up to 12.0 mph / 19.3 kph |
| Fuel Capacity |
10.5 gal. / 39.7 L / 42 Qt. |
| Fuel Type |
Gasoline |
| Height of Cut |
1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.25 in (0.64 cm) increments |
| Hour Meter |
Standard Hour Meter |
| Number of Blades |
3 |
| Product Type |
Stand-On Mowers |
| Reverse Ground/Transport Speed |
Up to 5.0 mph / 8.0 kph |
| Spindle Bearings |
Greaseless Ball Bearings |
| Spindle Housing |
9 in / 22.9 cm Diameter Cast Aluminum |
| Start Type |
Electric |
| Steering Controls |
Twin Lever |
