Category: Cut-Off Saws
Primary Use: Commercial
Power Type: Gas

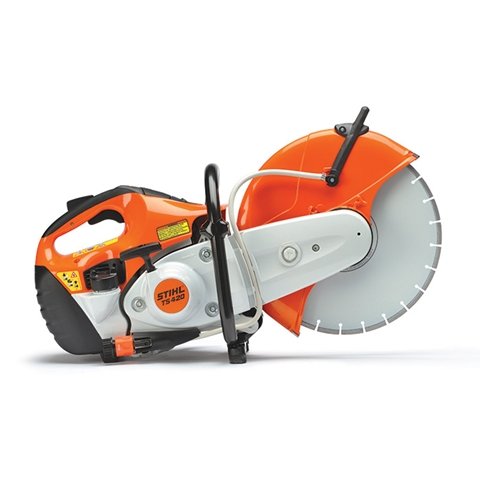

A 14” cutting wheel puts this cut-off machine in the big leagues of performance, efficiency and ease of use.
Cart & Wheels/Blades Sold Separately
Reduced-Emission Engine Technology - Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
IntelliCarb™ Compensating Carburetor
The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
X2 Air Filtration System
The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.
Bayonet-Style Filler Cap
Includes retainer for easy use, even with gloves on.
Semi-Automatic Belt Tensioning
With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings.
STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.
Water connection with shut-off valve and quick connector.
Common Features for STIHL Cutquik® Cut-off Machines
View the features common to many gasoline-powered STIHL Cutquik® Cut-off Machines.
|TS 420 STIHL Cutquik® Specifications|
|MAXIMUM CUTTING DEPTH||4.9"|
|MAXIMUM WHEEL SIZE||14"|
|MAXIMUM SPINDLE SPEED||5,350 rpm|
|ARBOR SIZE||.787 in.|
|ENGINE SPEED||9,000 rpm|
|ENGINE POWER||4.4 bhp|
|FUEL CAPACITY||24 oz.|
|DISPLACEMENT||4.07 cu. in.|
