Category: Cut-Off Saws
Primary Use: Commercial
Power Type: Gas

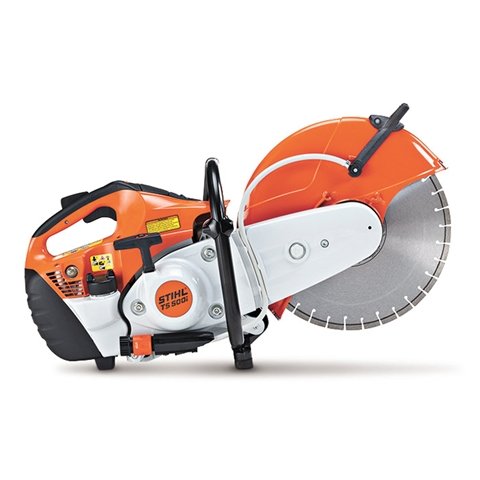

A cut-off machine with the world’s first electronically controlled fuel-injection system that increases power, not weight when operating 14” wheels.
Cart & Wheels/Blades Sold Separately
Reduced-Emission Engine Technology - Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.
Electronic Water Control (EWC)
Electronic Water Control allows the operator to easily adjust the flow of water while cutting and stops the water flow when the machine is at idle.
X2 Air Filtration System
The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.
Bayonet-Style Filler Cap
Includes retainer for easy use, even with gloves on.
Semi-Automatic Belt Tensioning
With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings.
Electronically Controlled Fuel Injection System
The fuel injection system makes starting easier and more reliable by eliminating the choke. Just set the switch to on, prime and pull.
STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.
Common Features for STIHL Cutquik® Cut-off Machines
View the features common to many gasoline-powered STIHL Cutquik® Cut-off Machines.
|TS 500i STIHL Cutquik® Specifications|
|MAXIMUM CUTTING DEPTH||4.9"|
|MAXIMUM WHEEL SIZE||14"|
|MAXIMUM SPINDLE SPEED||5,350 rpm|
|ARBOR SIZE||.787 in.|
|ENGINE SPEED||9,000 rpm|
|ENGINE POWER||5.2 bhp|
|FUEL CAPACITY||24.5 oz.|
|DISPLACEMENT||4.41 cu. in.|
