Category: Zero Turn Mower
Primary Use: Residential
Size: 54"
Power Type: Gas
Description
Product Highlights

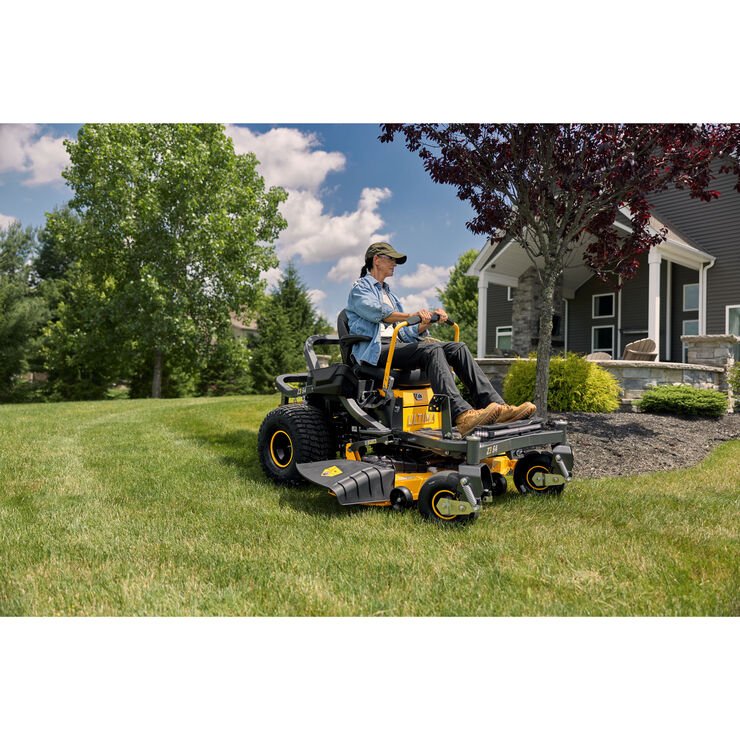

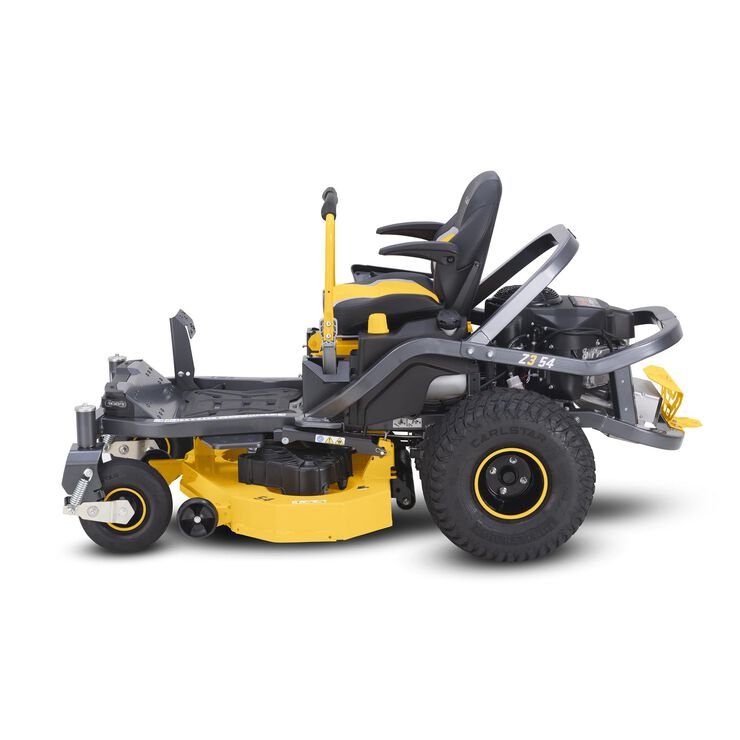

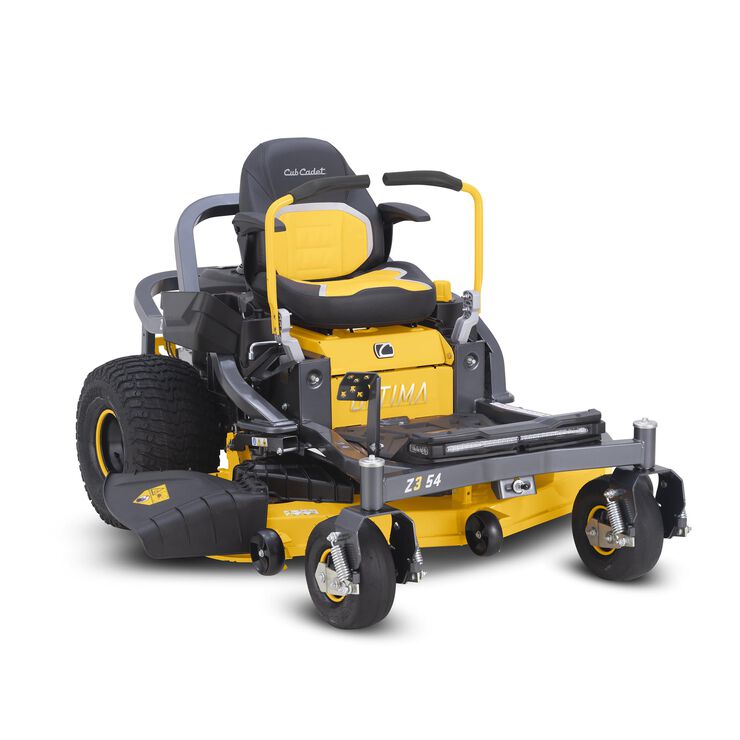

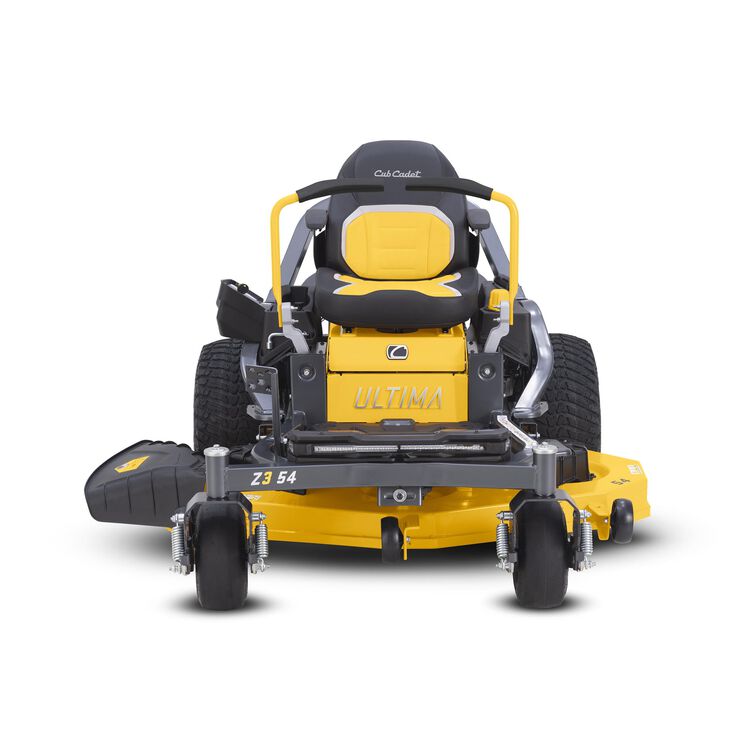

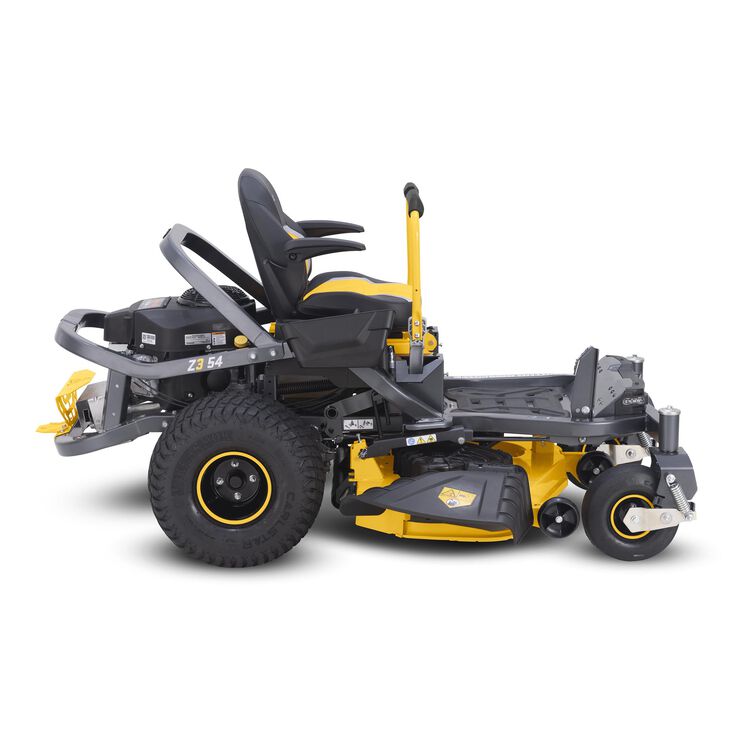

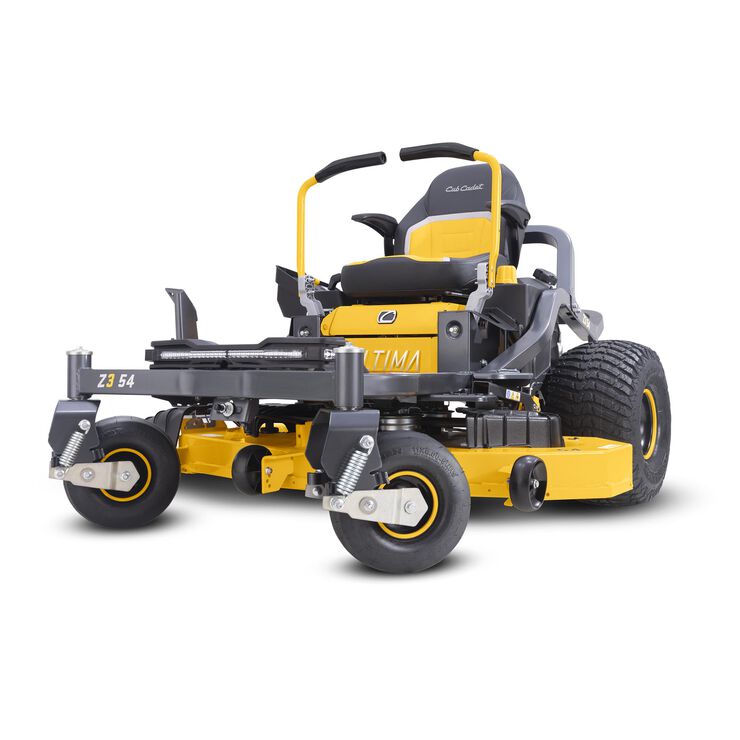

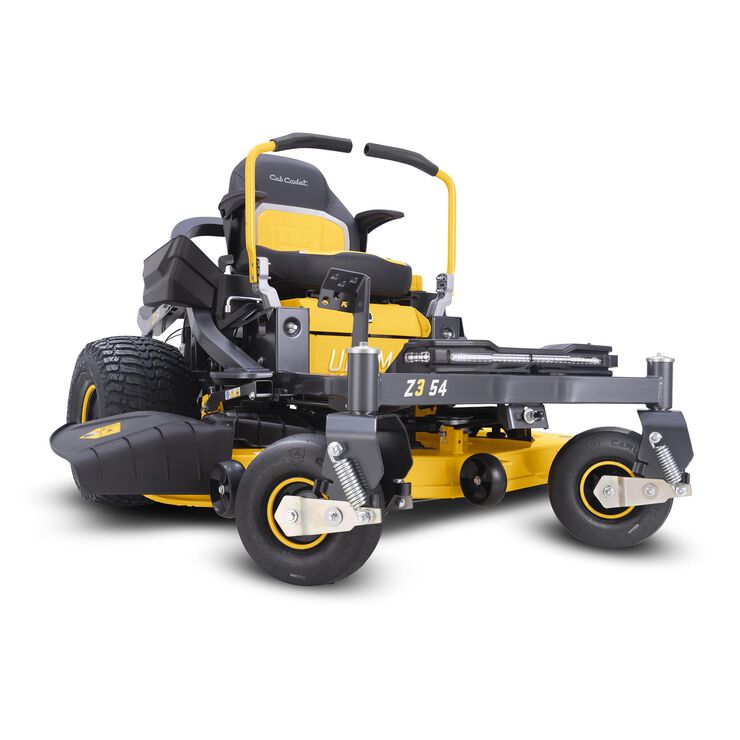

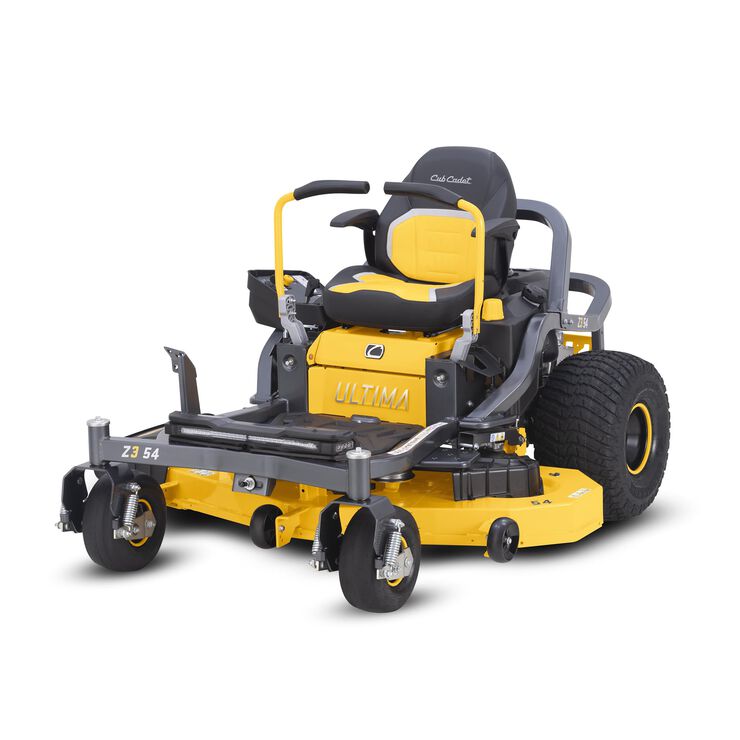

The Ultimate Mowing Experience is about to step up with enhanced comfort and performance designed to deliver the proven results you expect from the Ultima Series™. The Cub Cadet® Ultima Series Z3 54 54-in. 24 HP*/726cc Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck delivers the uncompromised performance, durable strength, and proven results needed to tackle hills and slopes up to 15-degrees. Work in comfort with a high back seat and save time mowing with an Ultima Series™ zero-turn, 25% faster than a tractor**.

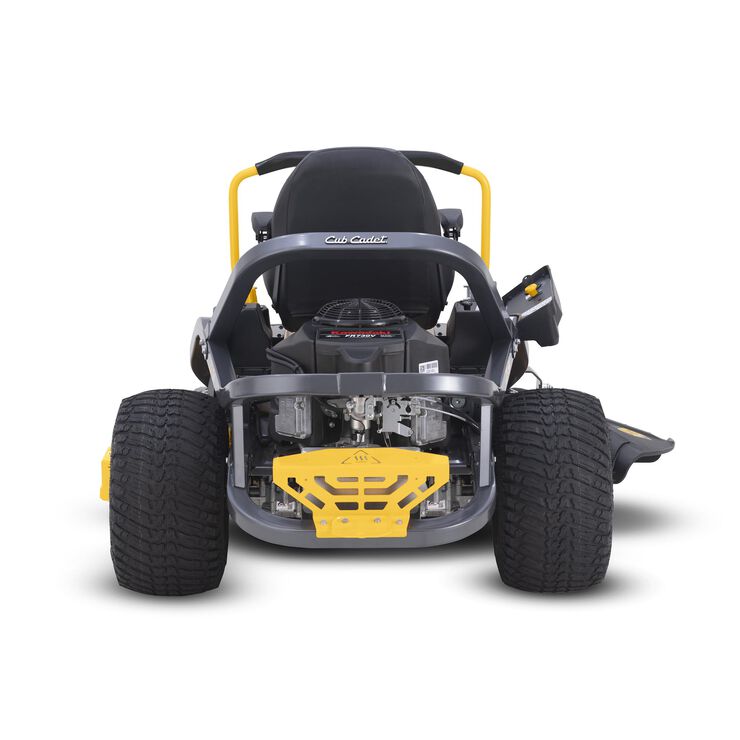

The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable 24 HP*/726cc Kawasaki® Engine built to meet fierce demands.
Dual hydrostatic Dual hydrostatic transmissions allow for quick and effortless 7.5 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finishallow for quick and effortless 7.5 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.

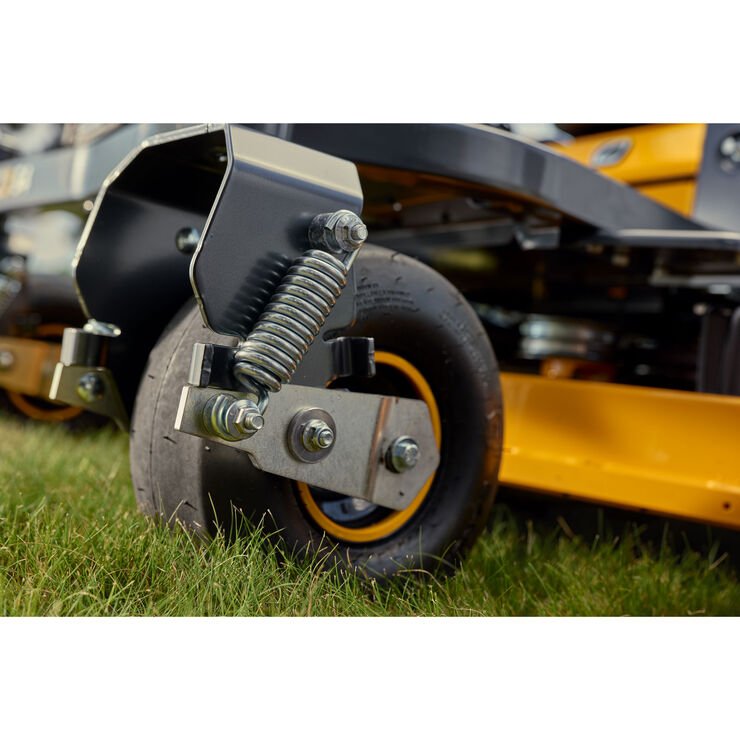

Ride in ultimate comfort thanks to a front caster suspension that delivers up to 1,050 lbs. of shock absorption to help reduce vibration.*
Specifications
Engine
Engine Brand: Kawasaki®
Engine Model: FR Series
Engine Model Number: 730V
Engine Displacement: 726cc
Engine Output: 24HP
Starter Type: Electric
Fuel Tank Capacity: 3.5 gal. US (13.25 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.1 qt US ( 2 L)
Lubrication: Fully pressurized
Charging System: 15 amp regulated
Fuel Gauge: No
Governor: Mechanical
Choke: Separate Choke
Air Filter: Single element
Oil Filter: Yes
Fuel Delivery: Carburetor
Battery
Battery: 230 CCA
Battery Type: Lead Acid
Battery Voltage: 12V
Drive System
Transmission: Tuff Torq TZ 350
Forward Speed: 7.5 MPH /12.0 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h
Drive System: Hydrostatic
Cutting Deck
Deck Cutting Width: 54 in
Deck Wash: No
Deck Material: 11-gauge steel
Deck Engagement (PTO): Electric
Deck Construction: Reinforced Fabricated
Blade(s): Three
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1'' - 4.5''
Anti-Scalping: Three gauge wheels
Deck Positions: 15
Chassis
Frame: 2'' x 2'' tubular steel
Turning Radius: 0°
ROPS: No
Rear Tow Hitch: Yes
Corrosion Protection: Yes
Front Caster Yokes: 5/16" Steel
Controls
Cruise Control: No
Handle Grip(s): Ergonomic Overmolded Soft Touch
Brakes: Disc
Steering Control: Lap Bars
Comfort
Seat Type: 20" Cut-and-Sew with Head Bolster
Armrests: Yes
Seat Adjustment: Lever
Front Caster Suspension: Yes
Wheels
Rear Tires: 20"x 12"-8"
Front Tires: 13"x 6.5"-6"
Tire Tread: Turf Armor
Specifications
Series: Ultima Series™ Z
Additional Specifications
Hour Meter: Yes
Mulch Kit: Available separately

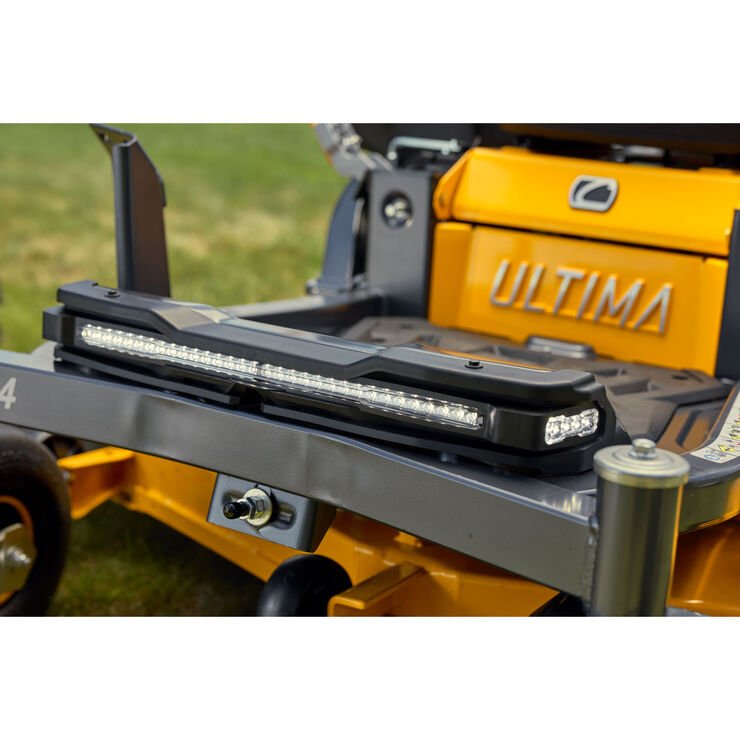

Headlight(s): LED Lightbar with Side Lights
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Lap Bar Integrated
Model Number: 17RIECE3010
Warranty
Residential Warranty: 3-year unlimited hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime limited
Commercial Warranty: No
Disclaimers
Specifications: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Horsepower: As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
Efficiency: **Mowing identical grass conditions using a 42-inch Ultima Series zero-turn mower at a speed of 7 MPH vs. a Cub Cadet® 42-inch lawn tractor at a speed of 5 MPH.
Caster Suspension: Based on each wheel taking 525 lbs of force for up to a total of 1,050 lbs. of resistance/impact loading.
LED Lightbar with Side Lights: Front LED light bar with side lights vs. Cub Cadet® Classic Twin LED Front Headlights 625-05041, measured in total lumens.
