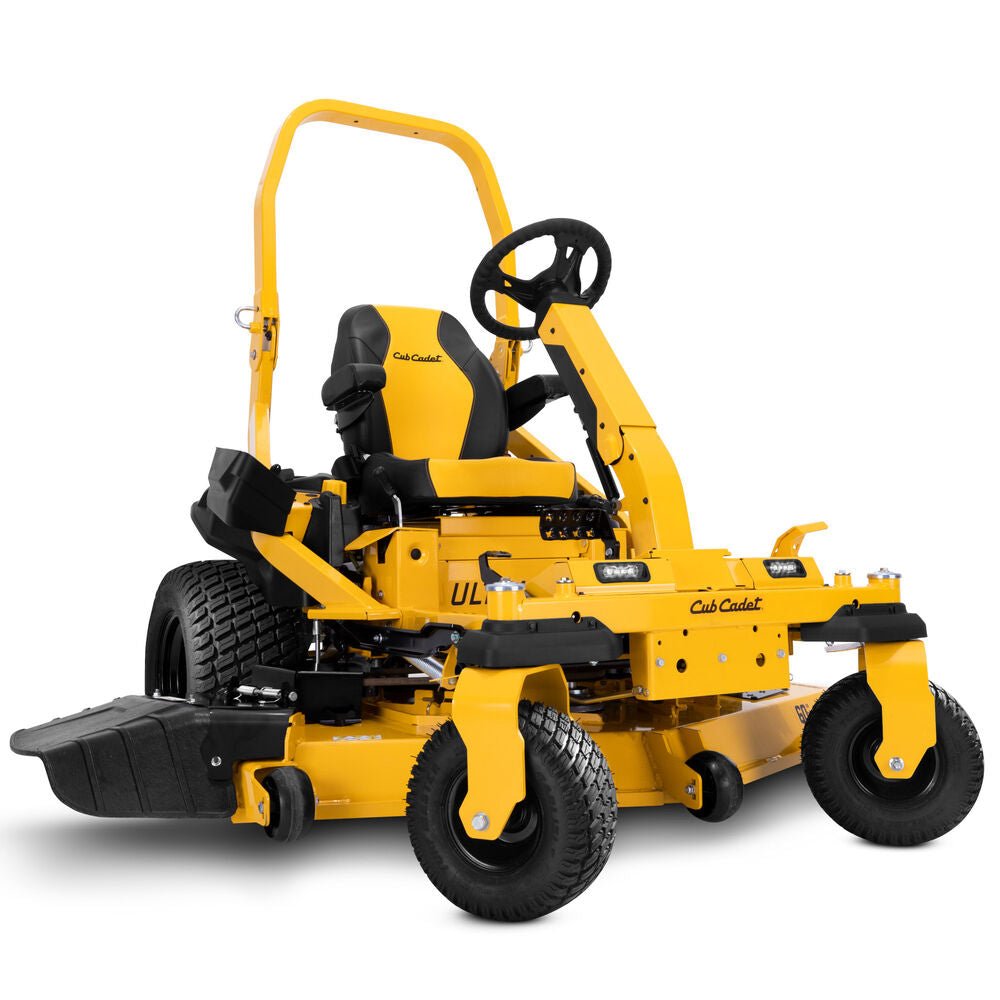

Ultima Series™ ZTXS5 60 60" Heavy Duty Commercial Steering Wheel Zero Turn

Name: Ultima Series™ ZTXS5 60 60" Heavy Duty Commercial Steering Wheel Zero Turn
Brand: Cub Cadet
SKU: CUB-47RKCAB8A10
Price: 8499.0 USD
Availability: OutOfStock

NewSave $800.00

Cub CadetSKU: CUB-47RKCAB8A10

Price:

$8,499.00 $9,299.00

Stock:

Call to Order

Quantity:

Available for store pickup and local delivery only

Pickup currently unavailable at Arco Lawn Equipment

Share this product

Category: Steering Wheel Zero Turn

Primary Use: Commercial

Size: 60"

Power Type: Gas

Product Highlights

Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
A 24 HP* Kohler KT-Pro 7000 Series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 8 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds, that quickly leaves your lawn with a professional-quality finish
A strong, continuous 1.5 in. x 3 in. tubular steel frame with a triple guard corrosion defense system, a multi-step process that electronically applies a corrosion resistance e-coat with meticulous care to help protect against wear and tear

Product Features

Engine

Engine Brand: Kawasaki®
Engine Model: FS Series
Engine Model Number: 730R
Engine Displacement: 726cc
Engine Output: 24HP
Starter Type: Electric
Fuel Tank Capacity: 5.5 gal. US (20.82 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.1 qt US ( 2 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: Yes
Governor: Mechanical
Choke: Choke-a-matic
Air Filter: Single element
Oil Filter: Yes
Fuel Delivery: Carburetor

Battery

Battery: 210 CCA
Battery Type: AGM (Absorbent Glass Mat)
Battery Voltage: 12V

Drive System

Transmission: Hydro-Gear ZT 3200
Forward Speed: 8.5 MPH / 13.7 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h
Drive System: Hydrostatic

Cutting Deck

Deck Cutting Width: 60 in
Deck Wash: No
Deck Material: 10-gauge steel with 2-gauge reinforcement
Deck Engagement (PTO): Electric
Deck Construction: Fabricated
Blade(s): Three
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1" - 4.75"
Anti-Scalping: Three gauge wheels
Deck Positions: 17

Chassis

Frame: 1.5" x 3" tubular steel
Turning Radius: 0°
ROPS: Yes
Rear Tow Hitch: Yes
Corrosion Protection: Yes

Controls

Cruise Control: No
Brakes: Disc
Steering Control: Steering Wheel

Comfort

Seat Type: 24" high back
Armrests: Yes
Seat Adjustment: Lever
Front Caster Suspension: No

Wheels

Rear Tires: 23"x 12"-12"
Front Tires: 13"x 6.5"-6"
Tire Tread: Turf Master / Multi Trac

Specifications

Series: Ultima Series™ ZTXS

Additional Specifications

Hour Meter: Yes
Mulch Kit: Available separately
Headlight(s): Dual-LED
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Foot Controlled
Model Number: 47RKCAB8A10

Warranty

Warranty: 4-year 800 hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime limited
Commercial Warranty: 4-year 800 hours
