Category: Zero Turn Mower
Primary Use: Residential
Size: 60"
Power Type: Gas
Description
Product Highlights

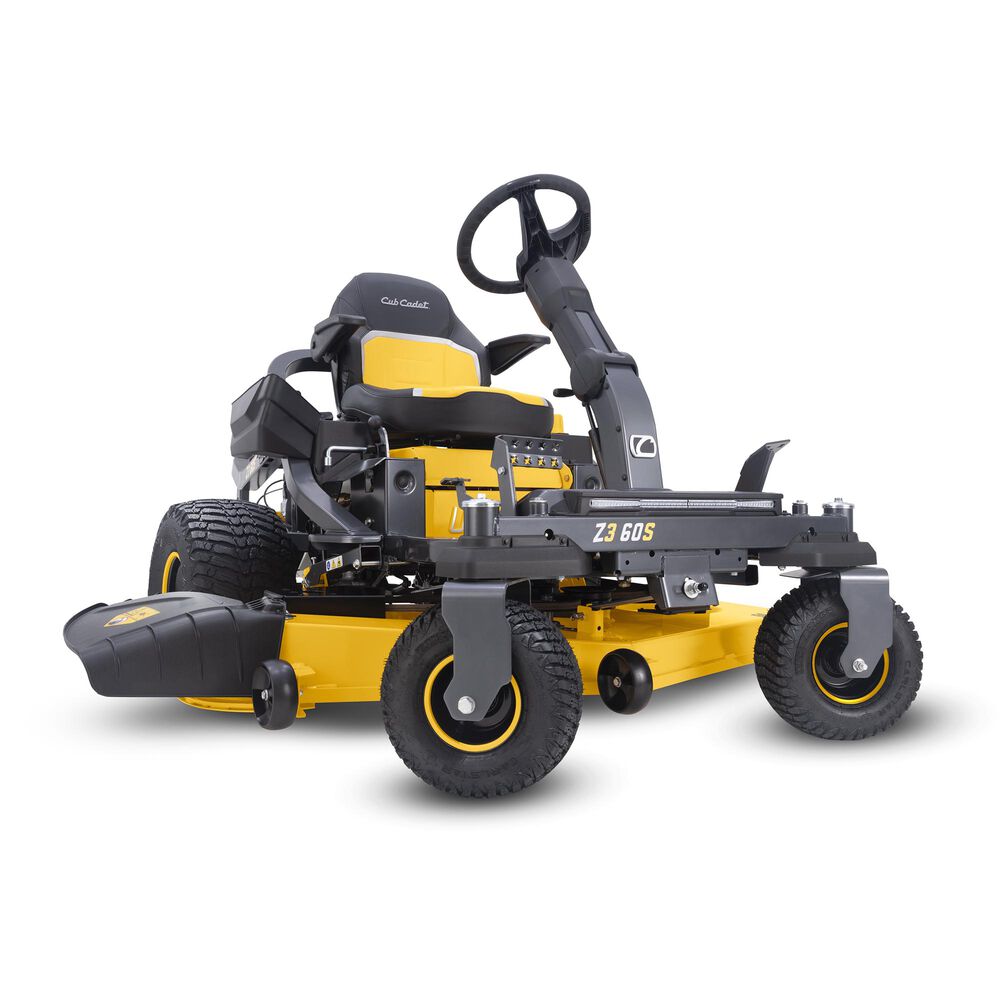

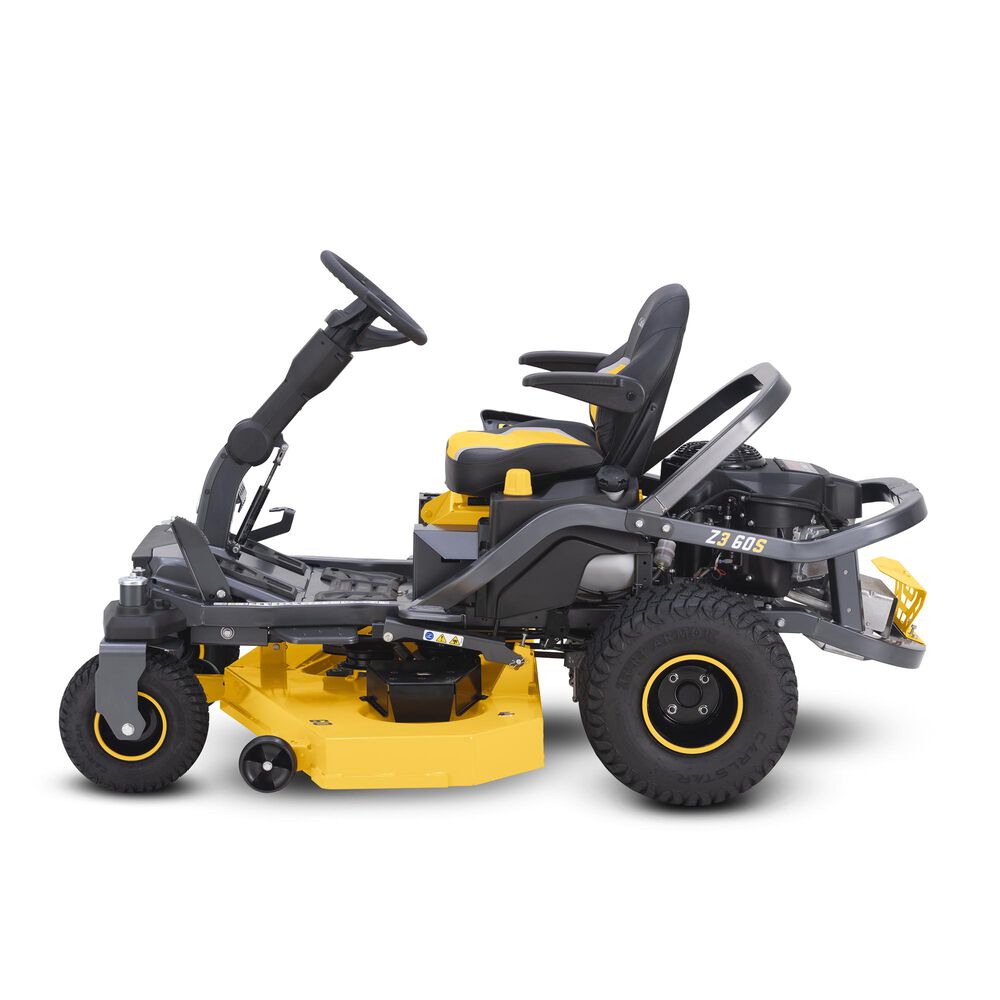

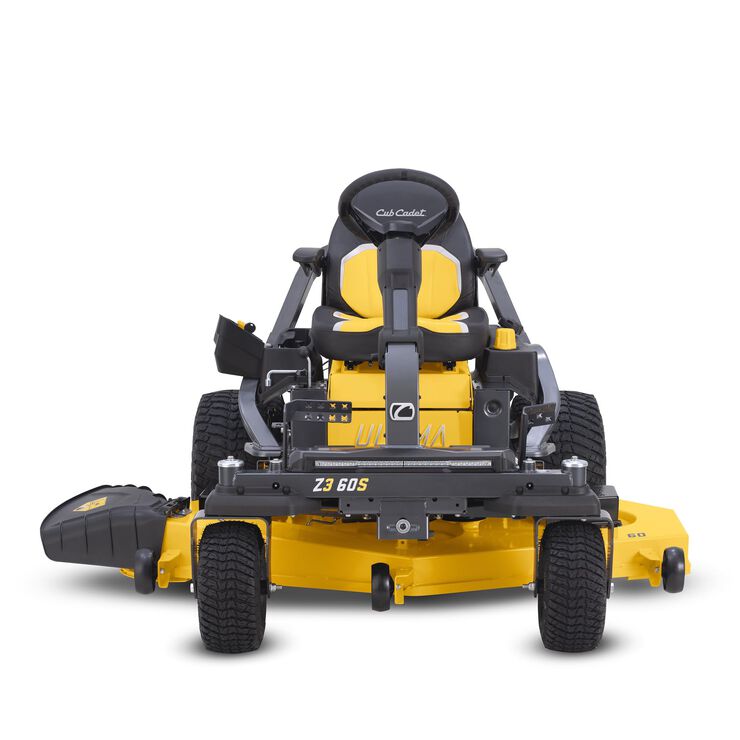

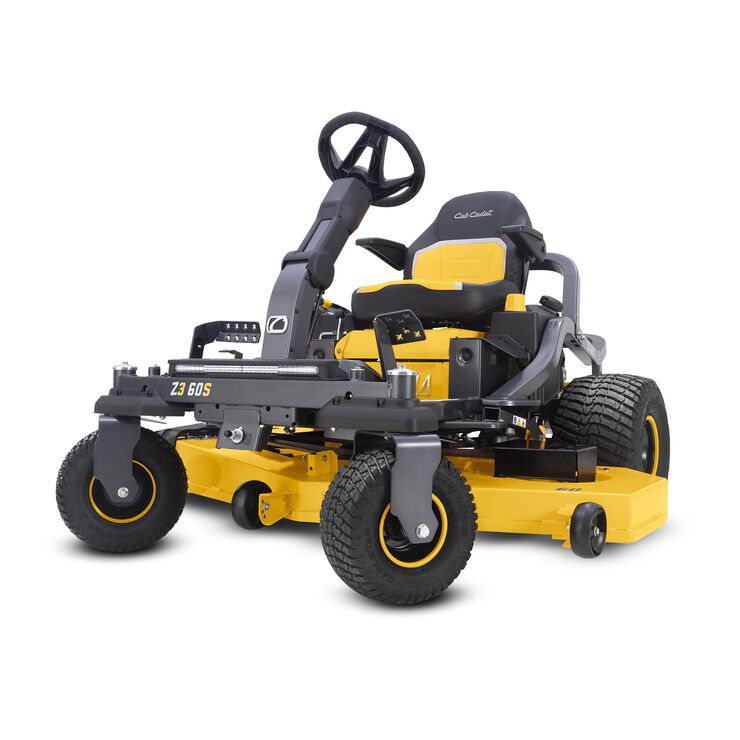

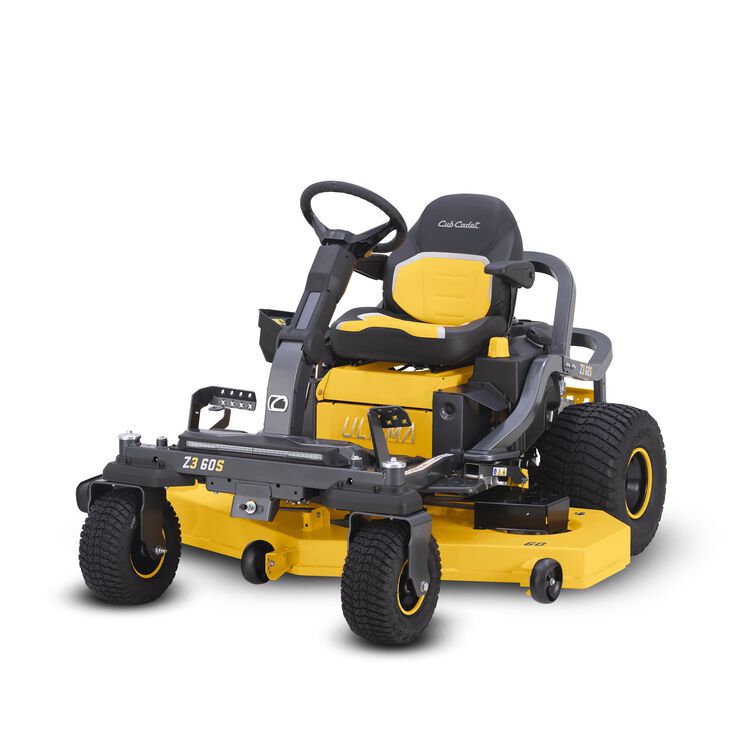

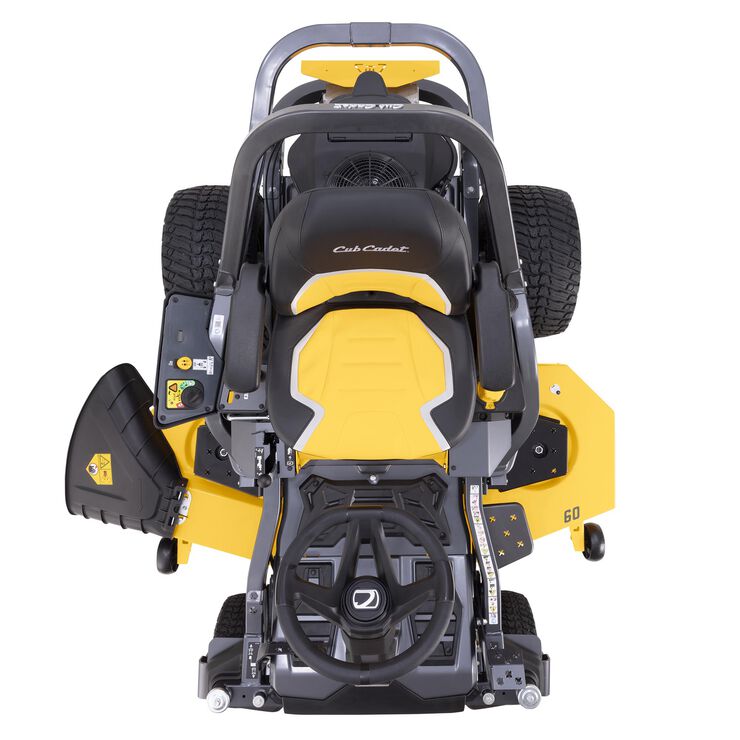

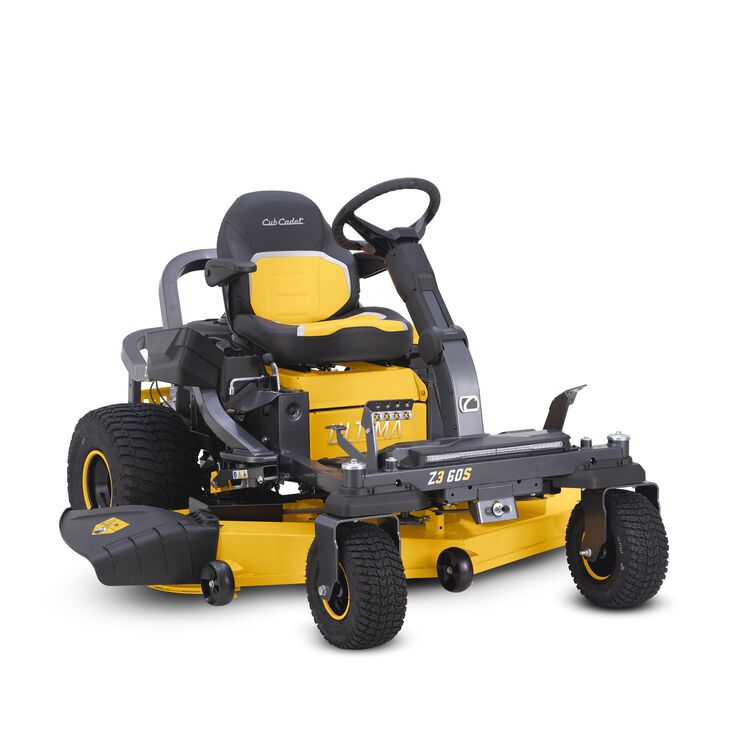

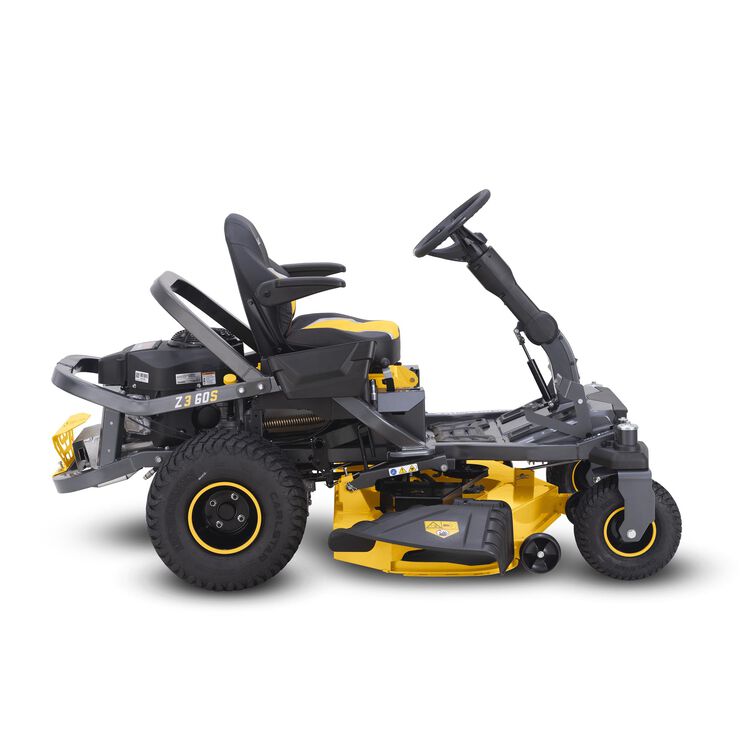

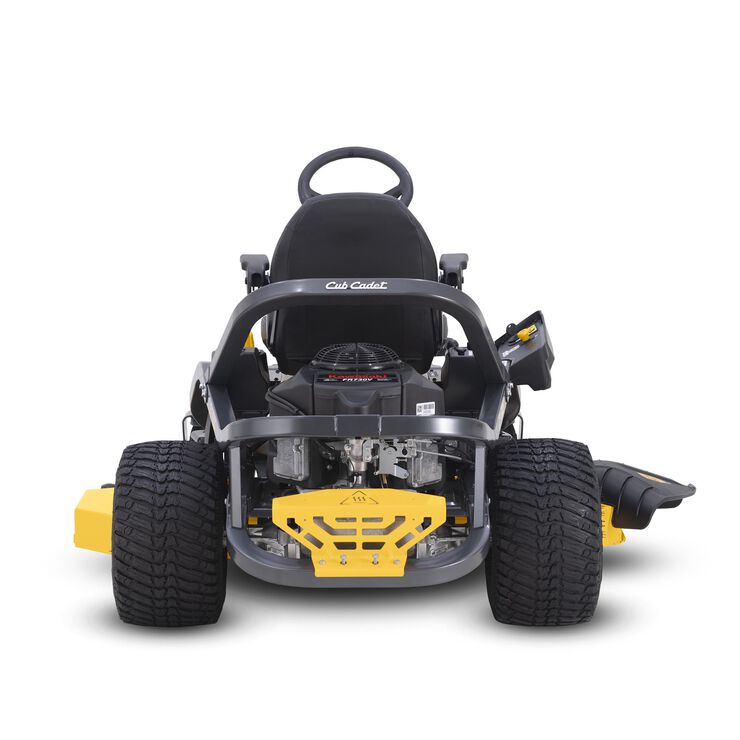

Step up to the advanced Ultima Series™, the Cub Cadet® Ultima Series Z3 60S 60-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is engineered for precision, control, and stability on challenging terrain. Don’t back down from hills and slopes up to 20-degrees**. Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides. Experience uncompromised performance and durable strength, designed to help you mow efficiently and maintain control.
Experience the ultimate in control even when facing slopes and hills up to 20-degrees with Cub Cadet® steering wheel zero-turns equipped with patented Synchro-Steer™ technology.

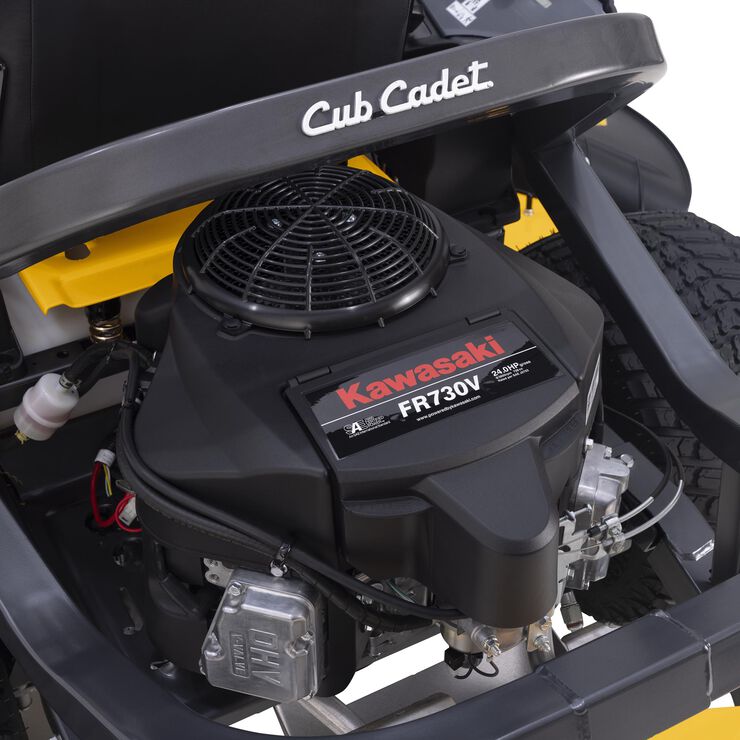

The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine. A 24 HP* Kawasaki® twin-cylinder OHV engine delivers high-performance to tackle your yard.
Dual hydrostatic transmissions allow for quick and effortless 7.5 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish

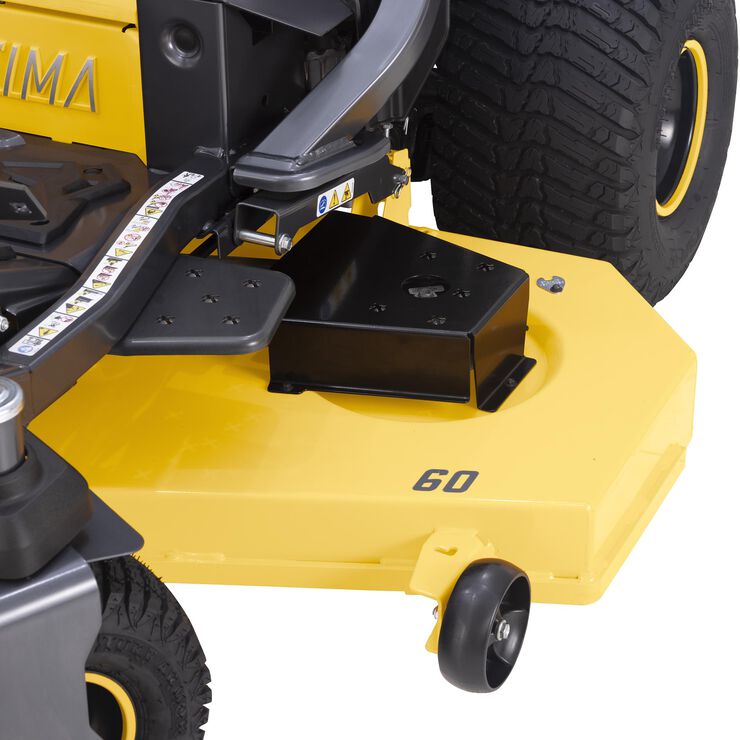

A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Specifications
Engine
Engine Brand: Kawasaki®
Engine Model: FR Series
Engine Model Number: 730V
Engine Displacement: 726cc
Engine Output: 24HP
Starter Type: Electric
Fuel Tank Capacity: 3.5 gal. US (13.25 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.1 qt. US (1.99 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: No
Governor: Mechanical
Choke: Separate Choke
Air Filter: Single element
Oil Filter: Yes
Fuel Delivery: Carburetor
Battery
Battery: 230 CCA
Battery Type: Lead Acid
Battery Voltage: 12V
Drive System
Transmission: Hydro-Gear ZT 2800
Forward Speed: 7 MPH / 11.3 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h
Drive System: Hydrostatic
Cutting Deck
Deck Cutting Width: 60 in
Deck Wash: No
Deck Material: 11-gauge steel
Deck Engagement (PTO): Electric
Deck Construction: Reinforced Fabricated
Blade(s): Three
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1'' - 4.5''
Anti-Scalping: Three gauge wheels
Deck Positions: 15
Chassis
Frame: 2'' x 2'' tubular steel
Turning Radius: 0°
ROPS: No
Rear Tow Hitch: Yes
Corrosion Protection: Yes
Front Caster Yokes: 1/4" Steel
Controls
Cruise Control: No
Brakes: Disc

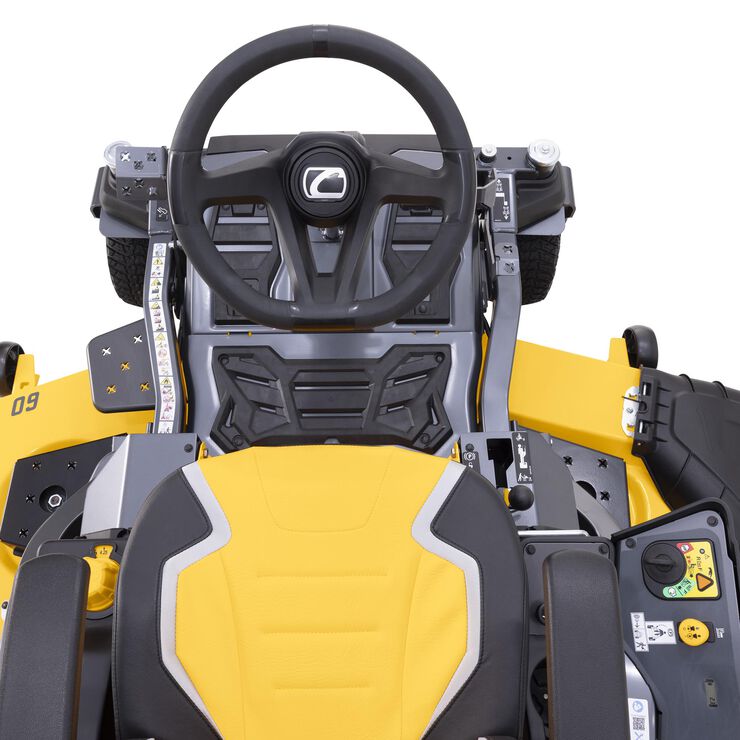

Steering Control: Steering Wheel
Comfort
Seat Type: 20" Cut-and-Sew with Head Bolster
Armrests: Yes
Seat Adjustment: Lever
Front Caster Suspension: No
Wheels
Rear Tires: 20”x 12”-8"
Front Tires: 13"x 6.5"-6"
Tire Tread: Turf Armor
Specifications
Series: Ultima Series™ ZS
Additional Specifications
Hour Meter: Yes
Mulch Kit: Available separately

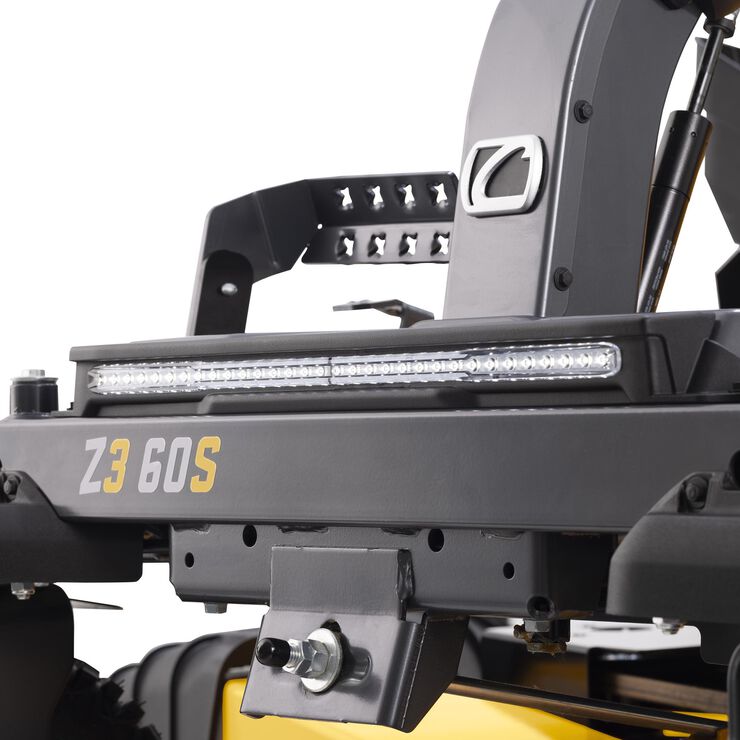

Headlight(s): Dual-LED
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Hand Lever
Model Number: 17CIGGY5A10
Warranty
Residential Warranty: 3-year unlimited hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime Limited
Commercial Warranty: No
Disclaimers
Specifications: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Horsepower: As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
Synchro-Steer™: *Synchro-Steer™ available on Cub Cadet Ultima Series™ ZS models
