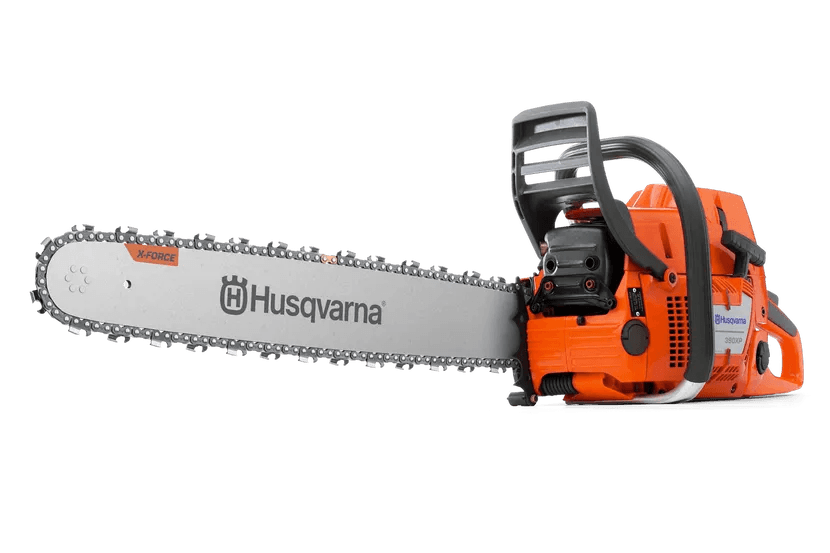

390 XP® Pro Chainsaw

Name: 390 XP® Pro Chainsaw
Brand: Husqvarna
SKU: HUS-965060714
Price: 1429.99 USD
Availability: OutOfStock

HusqvarnaSKU: HUS-965060714

Model: 390 XP 32" (965 06 07‑14)

Variant

Price:

$1,369.99

Stock:

In stock

Quantity:

Available for store pickup and local delivery only

Pickup available at Affton Lawn Equipment

Usually ready in 4 hours

Share this product

Category: Rear Handle Chainsaws

Primary Use: Commercial

Size:

Power Type: Gas

Discover the high end of logging and forestry chainsaws. The Husqvarna 390 XP® features professional performance and excellent vibration dampening, making work easier and more efficient than ever before. The LowVib® system and smart ergonomics make this large, powerful saw easy to handle – even with longer guide bars. Additionally, Smart Start® technology guarantees faster start-ups, while the rubber-mounted carburetor boosts durability. Prepare to get the job done like never before.

Specifications

Engine	32" RSN 3/8" 1,6 mm H83 Art no: 965 06 07‑14	20" Bar, 3/8" Pitch, .050" Gauge, Assembly Required Art no: 965 06 07‑20	24" Bar, 3/8" Pitch, .050" Gauge, Assembly Required Art no: 965 06 07‑24	28" Bar, 3/8" Pitch, .050" Gauge, Assembly Required Art no: 965 06 07‑28	20" Bar, 3/8" Pitch, .058" Gauge, Assembly Required Art no: 965 06 07‑30	32" Bar, 3/8" Pitch, .050" Gauge, Assembly Required Art no: 965 06 07‑32	24" Bar, 3/8" Pitch, .058" Gauge, Assembly Required Art no: 965 06 07‑34	28" Bar, 3/8" Pitch, .058" Gauge, Assembly Required Art no: 965 06 07‑38	28" RSN 3/8" 1,6 mm H83 Art no: 965 06 07‑50	28" US Lightweight RSN 3/8" 1,3 mm C83 Art no: 965 06 07‑58	32" US Lightweight RSN 3/8" 1,6 mm H83 Art no: 965 06 07‑62	36" US Lightweight RSN 3/8" 1,6 mm H83 Art no: 965 06 07‑66
Power output	6.5 hp	6.5 hp	6.5 hp	6.5 hp	6.5 hp	6.5 hp	6.5 hp	6.5 hp	6.5 hp	6.5 hp	6.5 hp	6.5 hp
Cylinder displacement	5.37 cu.inch	5.37 cu.inch	5.37 cu.inch	5.37 cu.inch	5.37 cu.inch	5.37 cu.inch	5.37 cu.inch	5.37 cu.inch	5.37 cu.inch	5.37 cu.inch	5.37 cu.inch	5.37 cu.inch
Maximum power speed	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm	9,600 rpm
Max engine/motor	13,000 rpm	13,000 rpm	13,000 rpm	13,000 rpm	13,000 rpm	13,000 rpm	13,000 rpm	13,000 rpm	13,000 rpm	13,000 rpm	13,000 rpm	13,000 rpm
Idling speed	2,700 rpm	2,700 rpm	2,700 rpm	2,700 rpm	2,700 rpm	2,700 rpm	2,700 rpm	2,700 rpm	2,700 rpm	2,700 rpm	2,700 rpm	2,700 rpm
Torque, max.	4.7 Nm	4.7 Nm	4.7 Nm	4.7 Nm	4.7 Nm	4.7 Nm	4.7 Nm	4.7 Nm	4.7 Nm	4.7 Nm	4.7 Nm	4.7 Nm
Torque, max. at rpm	6,600 rpm	6,600 rpm	6,600 rpm	6,600 rpm	6,600 rpm	6,600 rpm	6,600 rpm	6,600 rpm	6,600 rpm	6,600 rpm	6,600 rpm	6,600 rpm
Clutch engagement speed (±120)	3,600 rpm	3,600 rpm	3,600 rpm	3,600 rpm	3,600 rpm	3,600 rpm	3,600 rpm	3,600 rpm	3,600 rpm	3,600 rpm	3,600 rpm	3,600 rpm
Fuel consumption	476 g/kWh	476 g/kWh	476 g/kWh	476 g/kWh	476 g/kWh	476 g/kWh	476 g/kWh	476 g/kWh	476 g/kWh	476 g/kWh	476 g/kWh	476 g/kWh
Fuel consumption	4.98 lbs/h	4.98 lbs/h	4.98 lbs/h	4.98 lbs/h	4.98 lbs/h	4.98 lbs/h	4.98 lbs/h	4.98 lbs/h	4.98 lbs/h	4.98 lbs/h	4.98 lbs/h	4.98 lbs/h
Spark plug	Champion RCJ7Y, NGK BPMR7A	Champion RCJ7Y, NGK BPMR7A	Champion RCJ7Y, NGK BPMR7A	Champion RCJ7Y, NGK BPMR7A	Champion RCJ7Y, NGK BPMR7A	Champion RCJ7Y, NGK BPMR7A	Champion RCJ7Y, NGK BPMR7A	Champion RCJ7Y, NGK BPMR7A	Champion RCJ7Y, NGK BPMR7A	Champion RCJ7Y, NGK BPMR7A	Champion RCJ7Y, NGK BPMR7A	Champion RCJ7Y, NGK BPMR7A
Electrode gap	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in	0.02 in
Ignition module air gap	0 in	0 in	0 in	0.01 in	0.01 in	0 in	0 in	0 in	0 in	0 in	0 in	0 in
Oil pump type	Automatic	Adjustable flow	Adjustable flow	Adjustable flow	Adjustable flow	Adjustable flow	Adjustable flow	Adjustable flow	Automatic	Automatic	Automatic	Automatic
Oil pump capacity, max	24 ml/min	24 ml/min	24 ml/min	24 ml/min	24 ml/min	24 ml/min	24 ml/min	24 ml/min	24 ml/min	24 ml/min	24 ml/min	24 ml/min
Oil pump capacity, min	6 ml/min	6 ml/min	6 ml/min	6 ml/min	6 ml/min	6 ml/min	6 ml/min	6 ml/min	6 ml/min	6 ml/min	6 ml/min	6 ml/min
Equipment
Bar length (inch)	32 in	20 in	24 in	28 in	20 in	32 in	24 in	18 in	28 in	28 in	32 in	36 in
Recommended bar length, min	18 in	18 in	18 in	18 in	18 in	18 in	18 in	18 in	18 in	18 in	18 in	18 in
Recommended bar length, max	28 in	28 in	28 in	28 in	28 in	28 in	28 in	28 in	28 in	28 in	28 in	28 in
Chain type	H83	C83	C83	C83	C85	C83	C85	C85	H83	C83	H83	H83
Gauge	.063"	.058"	.058"	.058"	.058"	.058"	.058"	.058"	.063"	.058"	.058"	.058"
Pitch	3/8"	3/8"	3/8"	3/8"	3/8"	3/8"	3/8"	3/8"	3/8"	3/8"	3/8"	3/8"
Sprocket type	Rim 7	Rim 7	Rim 7	Rim 7	Rim 7	Rim 7	Rim 7	Rim 7	Rim 7	Rim 7	Rim 7	Rim 7
Dimensions
Weight (excl. cutting equipment)	16.1 lbs	16.1 lbs	16.1 lbs	16.1 lbs	16.1 lbs	16.1 lbs	16.1 lbs	16.1 lbs	16.1 lbs	16.1 lbs	16.1 lbs	16.1 lbs
Lubricant
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1
Oil tank volume	1.06 US pint	1.06 US pint	1.06 US pint	1.06 US pint	1.06 US pint	1.06 US pint	1.06 US pint	1.06 US pint	1.06 US pint	1.06 US pint	1.06 US pint	1.06 US pint
Oil tank volume	0.5 l	0.5 l	0.5 l	0.5 l	0.5 l	0.5 l	0.5 l	0.5 l	0.5 l	0.5 l	0.5 l	0.5 l
Sound and Noise
Sound power level, guaranteed (LWA)	119 dB(A)	119 dB(A)	119 dB(A)	119 dB(A)	119 dB(A)	119 dB(A)	119 dB(A)	119 dB(A)	119 dB(A)	119 dB(A)	119 dB(A)	119 dB(A)
Sound power level, measured	117 dB(A)	117 dB(A)	117 dB(A)	117 dB(A)	117 dB(A)	117 dB(A)	117 dB(A)	117 dB(A)	117 dB(A)	117 dB(A)	117 dB(A)	117 dB(A)
Sound pressure level at operators ear	107 dB(A)	107 dB(A)	107 dB(A)	107 dB(A)	107 dB(A)	107 dB(A)	107 dB(A)	107 dB(A)	107 dB(A)	107 dB(A)	107 dB(A)	107 dB(A)
Vibration
Equivalent vibration level (ahv, eq) front handle	6.5 m/s²	3.5 m/s²	3.5 m/s²	3.5 m/s²	3.5 m/s²	3.5 m/s²	3.5 m/s²	3.5 m/s²	6.5 m/s²	6.5 m/s²	6.5 m/s²	6.5 m/s²
Equivalent vibration level (ahv, eq) rear handle	7.5 m/s²	6.2 m/s²	6.2 m/s²	6.2 m/s²	6.2 m/s²	6.2 m/s²	6.2 m/s²	6.2 m/s²	7.5 m/s²	7.5 m/s²	7.5 m/s²	7.5 m/s²
